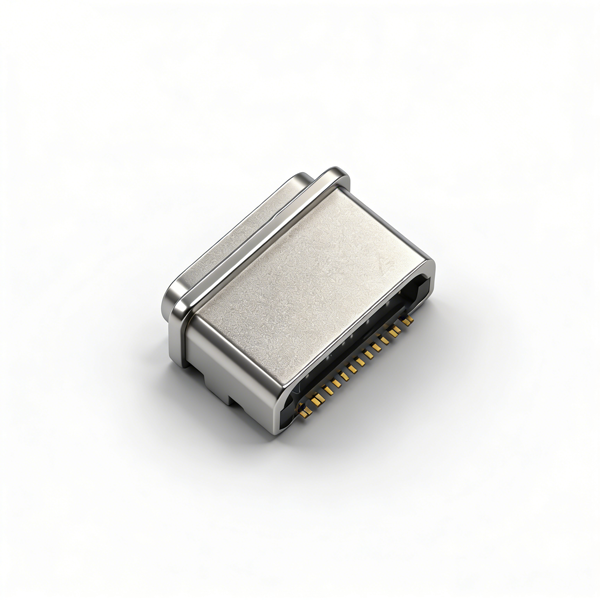

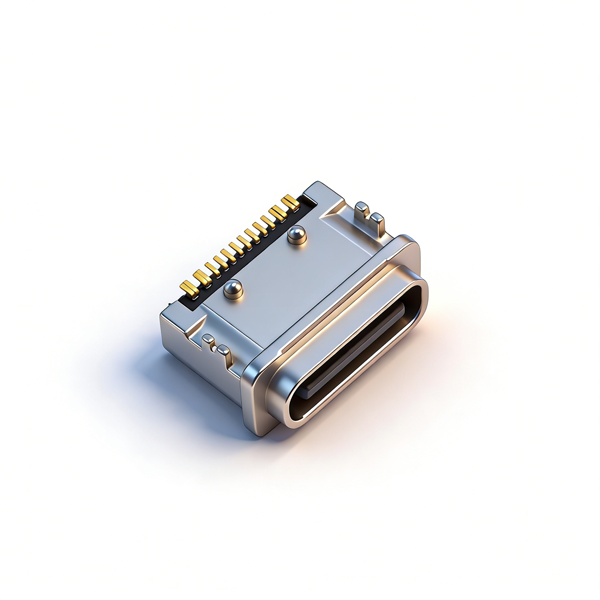

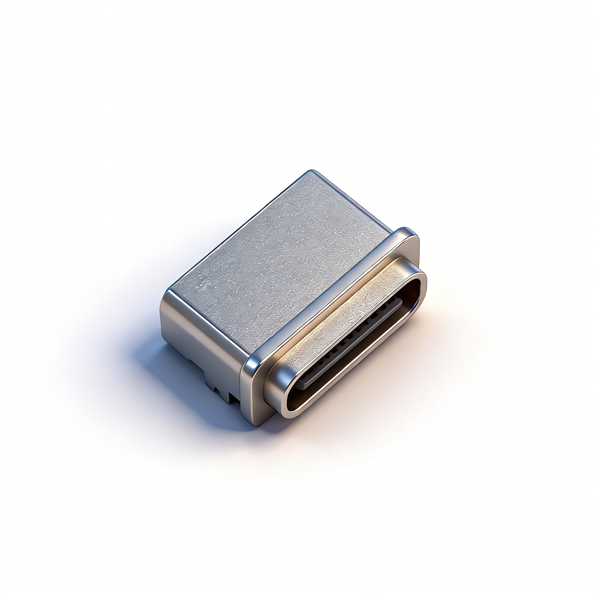

A04W1608A Waterproof TYPE‑C Female Socket 16PIN, On‑board Two‑Pin Through‑hole SMT, L=7.2, Zinc Alloy, IP67

IP67/IPX6 Waterproof Performance Assembly Specification: When assembling the product, the silicone waterproof ring and waterproof resin must be installed in strict accordance with the assembly diagram recommended in the drawing to ensure that the waterproof ring is free of damage, distortion and aging, the sealing surface is tightly fitted without misalignment, and the waterproof resin is filled evenly without bubbles and lack of glue. The panel installation must strictly match the reference dimensions of the drawing to ensure accurate assembly position. After assembly, a waterproof sealing test must be carried out. It is strictly prohibited to use the product when the waterproof structure is damaged or the assembly is not in place.

On-Board Installation & Soldering Process Specification: The PCB pad layout and 2-pin through-hole aperture must be designed in strict accordance with the recommended PCB layout of the drawing to ensure that the product is flush with the PCB surface without warping or offset after installation. During SMT mounting, it is necessary to ensure that the 2 through-hole pins are accurately aligned with the PCB holes, and the SMD pads are fully fitted with the pins to avoid mounting offset, pin bending, cold solder and false solder. The peak temperature of reflow soldering must be strictly controlled within 260℃±5℃, and the high temperature residence time shall not exceed 10 seconds to prevent the PA9T housing from thermal deformation, the zinc alloy shell coating from oxidation, and the pin gold plating from damage, which will affect the product performance and waterproof effect.

High Current Use Special Specification: The rated maximum current of this product is 5.0A. When using, it is necessary to strictly match the wire with the corresponding wire diameter and the current-carrying design of the PCB pad to ensure sufficient current-carrying capacity of the VBUS and GND high-current transmission paths, and overload use is strictly prohibited. When working with high current for a long time, a good heat dissipation design must be done to prevent the product from excessive temperature rise, which will lead to the decline of insulation performance, aging of plastic housing, failure of waterproof sealing and other problems.

PCB Layout & Equipment Adaptation Requirements: The PCB pad size and positioning holes must be designed in strict accordance with the product drawing, and sufficient operating space for plug insertion and extraction must be reserved to avoid physical interference between the product and surrounding components, equipment housing, and PCB board. It is recommended that the unmarked tolerance of PCB layout be controlled within ±0.05mm to ensure mounting accuracy, welding firmness and production yield. The opening of the equipment housing must strictly match the insertion size of the Type-C plug and the outline dimension of the product to avoid interference and damage to the interface during plugging and unplugging.

Plugging Operation & Use Specification: When plugging and unplugging the product, the Type-C plug must be axially aligned with the receptacle, and force must be applied evenly along the axial direction. Violent plugging, oblique plugging, shaking plugging, and lateral bending are strictly prohibited to prevent interface pin bending, housing cracking, internal contact damage, and waterproof structure loosening, so as to avoid affecting the electrical performance, waterproof performance and service life of the product. It is forbidden to use non-standard, deformed, damaged plugs or plugs with foreign objects for plugging, to prevent damage to the internal structure of the interface and scratching of the gold plating layer of the contacts.

Tape & Reel Packaging & Automatic Feeding Specification: This product is packaged in tape and reel, 1000PCS per reel. The peeling angle of the carrier tape must be controlled within the range of 165°-180°. When feeding with a fully automatic mounter, the nozzle position and suction must be strictly controlled to avoid product deformation and pin offset caused by excessive nozzle pressure. After the tape is opened, it is necessary to avoid pulling and bending the carrier tape to prevent abnormal peeling force, product falling off and pin damage, which will affect the feeding efficiency and mounting accuracy.

Storage & Environmental Use Specification: The product must be stored in a dry, dust-free environment without corrosive gas and strong ultraviolet radiation. The storage temperature is controlled at 5℃~35℃, and the relative humidity is ≤75%. Avoid long-term exposure to high temperature, high humidity, acid-base corrosion and salt spray environment to prevent aging of plastic housing, loss of elasticity of silicone waterproof ring, oxidation of metal coating and attenuation of sealing performance. The product should be used as soon as possible after opening, to avoid long-term exposed storage affecting the waterproof sealing effect and electrical contact performance.

Transportation & Turnover Specification: During the transportation and production turnover of the product, the original packaging must be kept intact. Severe impact, extrusion and falling of the tape reel are prohibited to prevent carrier tape deformation, product falling off, pin bending deformation, shell bump damage and waterproof sealing structure damage. Anti-static protection must be done during turnover to avoid electrostatic breakdown damage to the internal contacts and coatings of the interface.
