Waterproof Performance Protection Specifications: When installing the product, the housing assembly must be carried out in strict accordance with the assembly suggestion drawing in the drawing to ensure that the waterproof sealing structure is intact and undamaged, the environmentally friendly glue is applied evenly, and the sealing surface is tightly fitted without misalignment, missing glue or falling off; when designing the housing, pay attention to the insertion depth of the plug and reserve a suitable chamfer to avoid the failure of waterproof sealing caused by insufficient insertion; after installation, a waterproof sealing test must be carried out to ensure that the protection performance meets the standard. It is forbidden to use the product when the waterproof structure is damaged and the sealing is not in place.
Sink Plate Installation & Mounting Soldering Specifications: The sink plate slot size and pad layout of the PCB must be designed in strict accordance with the recommended PCB layout in the drawing. The slot tolerance must match the sink plate depth requirement of 1.4mm to ensure that the product is flush with the PCB surface after sink plate installation, without warping or offset; during SMT mounting, it is necessary to ensure the precise alignment of the 4-pin through-board with the PCB through-holes, and the mounting pins are fully fitted with the pads to avoid mounting offset, pin bending and pad cold solder; the peak temperature of reflow soldering must be strictly controlled at 260℃, and the holding time of the peak temperature on the board shall not exceed 10 seconds, to prevent thermal deformation of the plastic housing, oxidation of the stainless steel shell plating, and damage to the pin contacts, which will affect the product performance and waterproof effect.
PCB Layout & Equipment Adaptation Requirements: PCB pad size, through-hole aperture, sink plate slot, positioning hole position must be designed in strict accordance with the product drawing, and sufficient sink plate installation space and plug mating operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing; it is recommended that the PCB layout tolerance be controlled within ±0.05mm to ensure the accuracy of sink plate installation, welding firmness and production yield; the equipment housing opening must match the plug insertion size to avoid interference damage to the interface during mating.
Mating & Usage Specifications: The male and female connectors must be aligned horizontally during mating, apply force evenly along the axial direction, violent insertion, oblique insertion, shaking insertion and horizontal pulling are prohibited, to prevent interface pin deformation, shell cracking, internal contact damage, and waterproof structure loosening, and avoid affecting the electrical performance, waterproof performance and service life of the product; it is forbidden to use non-standard, damaged and deformed male plugs for mating to prevent damage to the internal structure of the interface.
Environment & Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases and strong ultraviolet radiation, the storage temperature is controlled at 5℃~35℃, and the relative humidity is ≤75%. Avoid long-term exposure to high temperature, high humidity, acid and alkali corrosion, salt spray environment to prevent oxidation and corrosion of the stainless steel shell, aging of the plastic housing, oxidation of the contact plating, and attenuation of sealing performance; the product should be used as soon as possible after opening, avoid long-term exposed storage affecting the waterproof sealing effect and electrical contact performance.

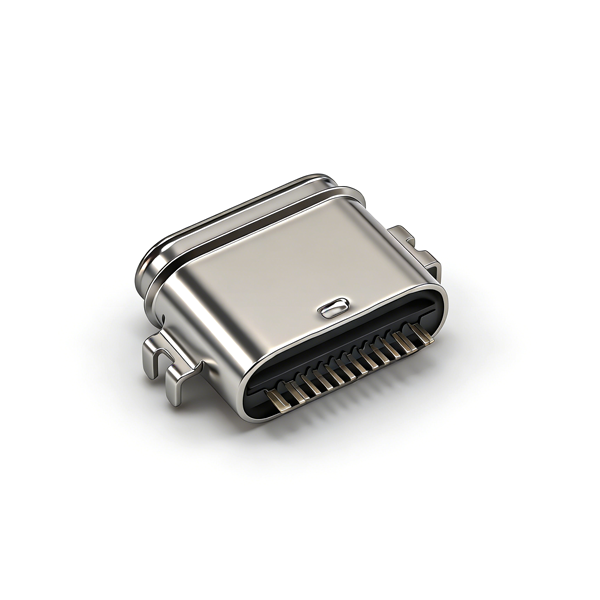

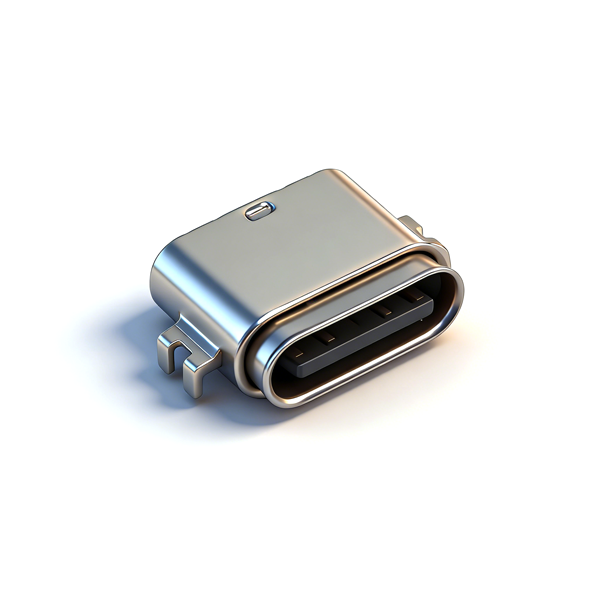

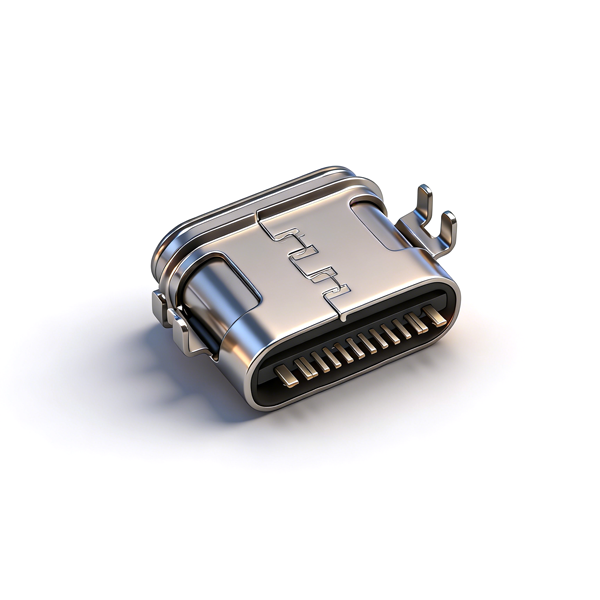

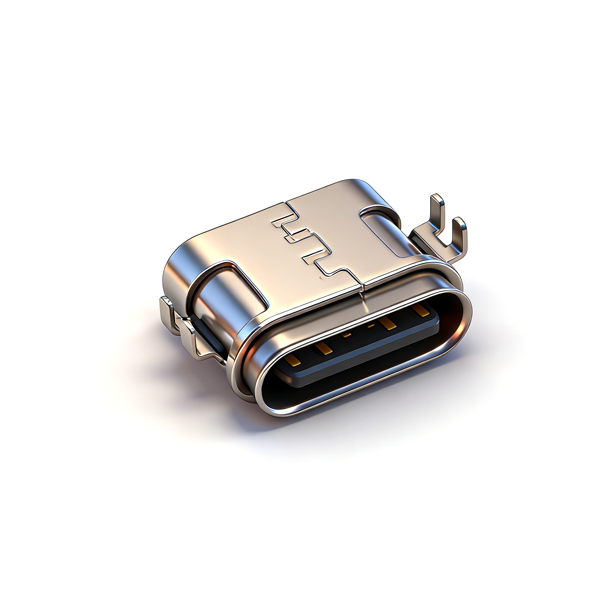

Adaptation & Selection Specifications: This product is a 1.4mm sink plate 16PIN waterproof TYPE-C female connector, which can only be used with matching standard TYPE-C male plugs. The selection must be based on the equipment housing thickness and sink plate depth requirements. It is forbidden to assemble and use with non-standard, customized, size-mismatched male plugs/equipment to prevent problems such as insufficient interface installation, structural damage, waterproof failure, and poor electrical contact.
Transportation & Handling Specifications: During transportation and production turnover, the original packaging must be kept intact. Severe impact, extrusion and dropping of the tape reel are prohibited to prevent carrier tape deformation, product falling off, pin bending deformation, shell bump damage, and waterproof sealing structure damage; after the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force from affecting the feeding efficiency and accuracy of the automatic mounter.
