IP67 Waterproof Performance Protection Specifications: When assembling the product, the housing assembly must be carried out in strict accordance with the assembly diagram and opening size reference in the drawing to ensure that the waterproof sealing structure is intact and undamaged. When assembling the shell, environmentally friendly lubricating oil must be applied to ensure that the sealing surface is tightly fitted without misalignment, extrusion or falling off; after installation, a waterproof sealing test must be carried out to ensure that the protection performance meets the standard. It is forbidden to use the product when the waterproof structure is damaged and the sealing is not in place.
Mounting & Soldering Specifications: During SMT mounting, it is necessary to ensure the precise alignment of the vertical 4 pins with the PCB pads and through-holes, and at the same time ensure that the SMT pads are fully fitted with the PCB pads to avoid mounting offset, pad misalignment, pin bending and deformation; the peak temperature of reflow soldering must be strictly controlled within the range of 260℃±5℃, and the high temperature residence time shall not exceed the industry standard, to prevent thermal deformation of the PA10T plastic housing, oxidation of the zinc alloy plating, and damage to the gold plating layer of the pin contacts, which will affect the product performance and waterproof effect.
PCB Layout & Installation Adaptation Requirements: PCB pad size, through-hole aperture and positioning hole position must be designed in strict accordance with the recommended PCB layout in the product drawing. The aperture tolerance must match the pin size, and sufficient vertical installation space, waterproof structure assembly space and exposed tongue operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing; it is recommended that the PCB layout tolerance be controlled within ±0.05mm to ensure the accuracy of vertical insertion, welding firmness and production yield.
Mating & Usage Specifications: The male and female connectors must be aligned horizontally during mating, apply force evenly along the axial direction, violent insertion, oblique insertion, shaking insertion and horizontal pulling are prohibited. Pay special attention to protecting the exposed tongue to avoid bending, deformation and fracture of the tongue, and at the same time prevent vertical pin deformation, shell cracking, internal contact damage, and waterproof structure loosening, and avoid affecting the electrical performance, waterproof performance and service life of the product.
Environment & Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases and strong ultraviolet radiation, the storage temperature is controlled at 5℃~35℃, and the relative humidity is ≤75%. Avoid long-term exposure to high temperature, high humidity, acid and alkali corrosion, salt spray environment to prevent oxidation and corrosion of the zinc alloy shell, aging of the plastic housing, oxidation of the gold plating layer of the contacts, and attenuation of sealing performance; the product should be used as soon as possible after opening, avoid long-term exposed storage affecting the waterproof sealing effect and electrical contact performance.

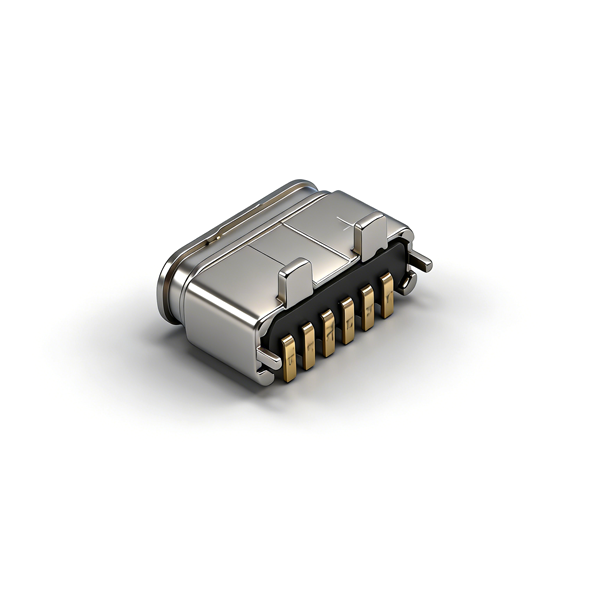

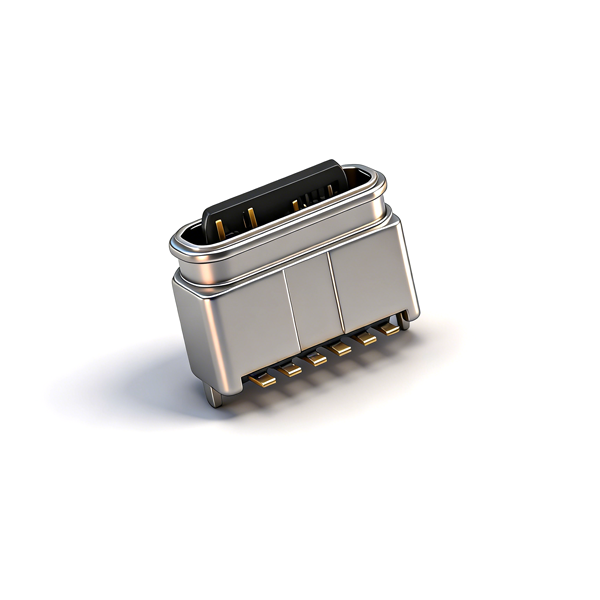

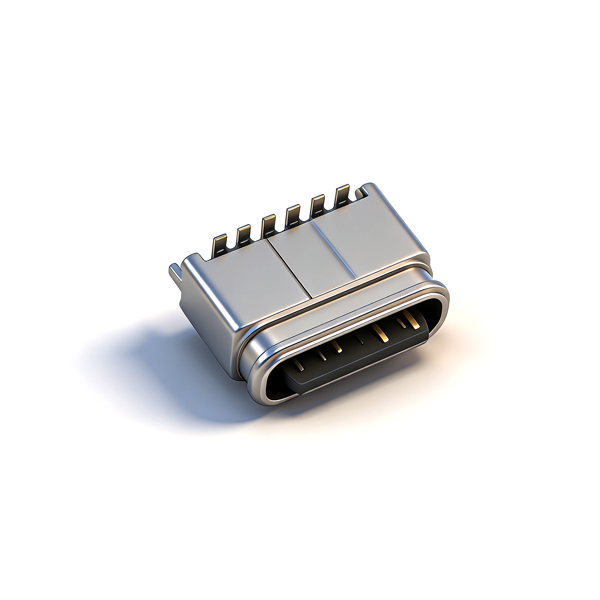

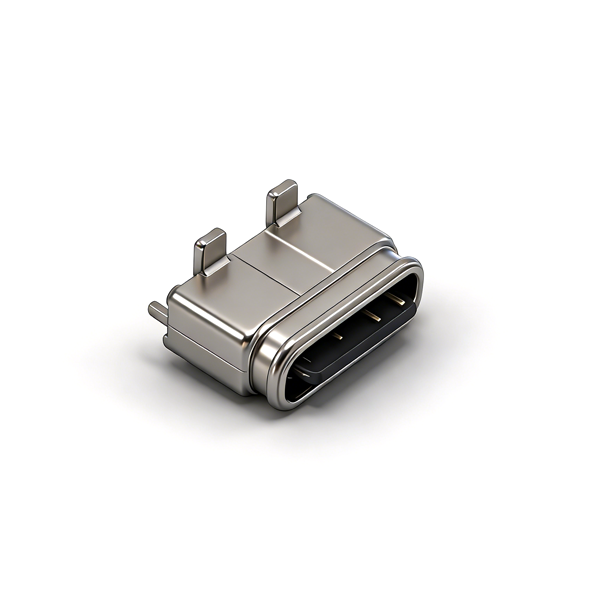

Adaptation & Selection Specifications: This product is an IP67 waterproof 6PIN fast charging dedicated TYPE-C female connector, which can only be used with matching standard TYPE-C male connectors. It is forbidden to mate with non-standard, customized, damaged, deformed male connectors with foreign objects to prevent damage to the internal structure of the interface, poor contact, short circuit, damage to the waterproof structure, and decline of sealing performance.
Transportation & Handling Specifications: During transportation and production turnover, the original packaging must be kept intact. Severe impact, extrusion and dropping of the tape reel are prohibited to prevent carrier tape deformation, product falling off, vertical pin bending deformation, exposed tongue bump damage, and waterproof sealing structure damage; after the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force from affecting the feeding efficiency and accuracy of the automatic mounter.
