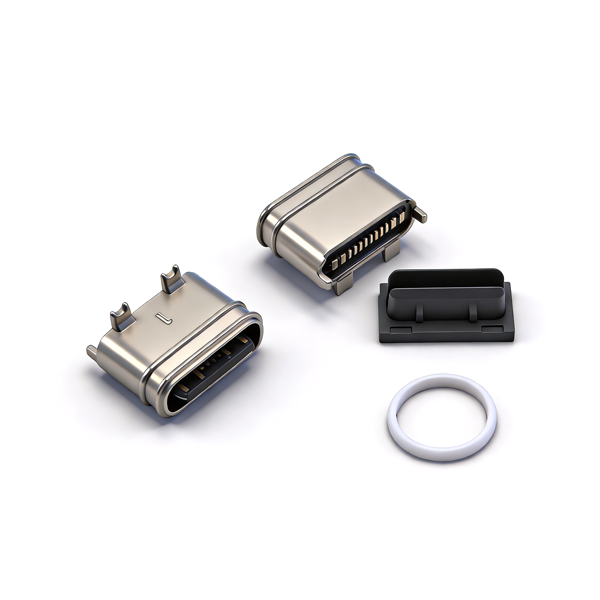

IP67 Waterproof Performance Protection Specifications: When installing the product, ensure that the white silicone waterproof ring is intact, undamaged, undeformed and non-aging. Assemble strictly according to the recommended peripheral interference and assembly drawing in the drawing to ensure that the waterproof ring is evenly fitted to the sealing surface of the equipment housing without misalignment, extrusion, falling off and twisting; when designing the housing, pay attention to the insertion depth of the plug and reserve a suitable chamfer to avoid the failure of waterproof sealing caused by insufficient insertion; after installation, a waterproof sealing test must be carried out to ensure that the protection performance meets the standard. It is forbidden to use the product when the waterproof structure and waterproof ring are damaged.
Mounting & Soldering Specifications: During SMT mounting, it is necessary to ensure the precise alignment of the vertical 2 pins with the PCB pads and through-holes, and at the same time ensure that the SMT pads are fully fitted with the PCB pads to avoid mounting offset, pad misalignment, pin bending and deformation; the peak temperature of reflow soldering must be strictly controlled at 260℃, and the holding time of the peak temperature on the board shall not exceed 10 seconds, to prevent thermal deformation of the high temperature resistant plastic housing, oxidation of the zinc alloy plating, damage to the pin contacts, and high temperature aging of the silicone waterproof ring to lose elasticity, which will affect the product performance and waterproof effect.
PCB Layout & Installation Adaptation Requirements: PCB pad size, through-hole aperture and positioning hole position must be designed in strict accordance with the recommended PCB layout in the product drawing, and sufficient vertical installation space, waterproof structure assembly space and exposed tongue operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing; it is recommended that the PCB layout tolerance be controlled within ±0.05mm to ensure the accuracy of vertical insertion, welding firmness and mounting yield.
Mating & Usage Specifications: The male and female connectors must be aligned horizontally during mating, apply force evenly along the axial direction, violent insertion, oblique insertion, shaking insertion and horizontal pulling are prohibited. Pay special attention to protecting the exposed tongue to avoid bending, deformation and fracture of the tongue, and at the same time prevent vertical pin deformation, shell cracking, pin fracture, waterproof structure loosening and internal contact damage, and avoid affecting the electrical performance, waterproof performance and service life of the product.
Environment & Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases and strong ultraviolet radiation, the storage temperature is controlled at 5℃~35℃, and the relative humidity is ≤75%. Avoid long-term exposure to high temperature, high humidity, acid and alkali corrosion, salt spray environment to prevent oxidation and corrosion of the zinc alloy shell, aging of the plastic housing, loss of toughness of the silicone waterproof ring, oxidation of the metal plating, and performance attenuation of the contacts; the product should be used as soon as possible after opening, avoid long-term exposed storage affecting the performance of the waterproof ring and electrical contact effect.

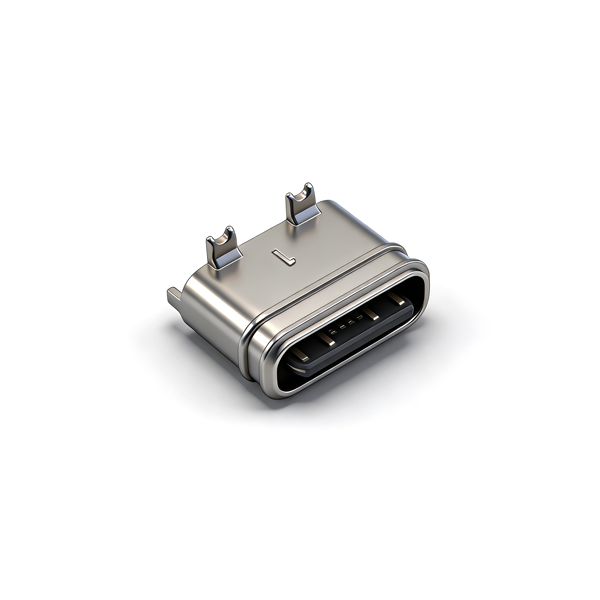

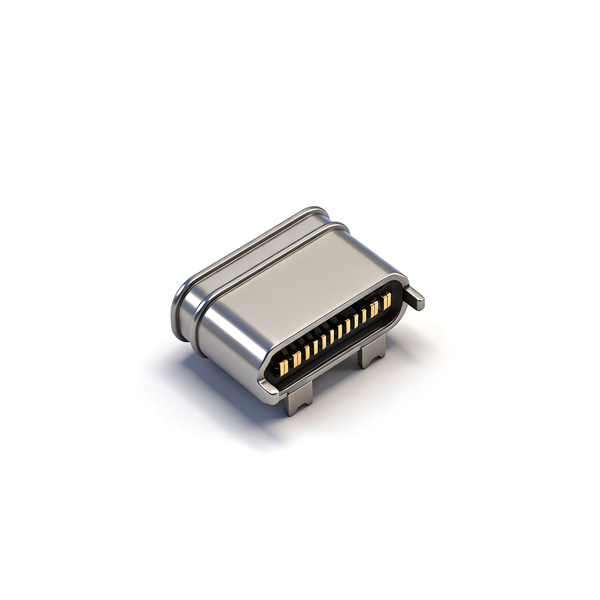

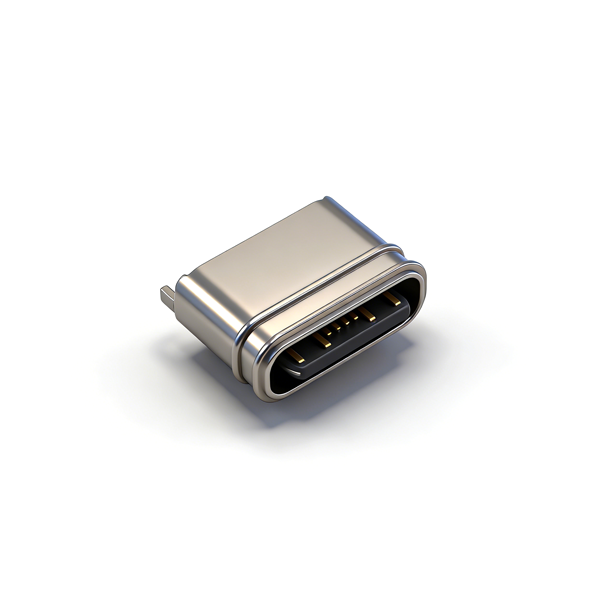

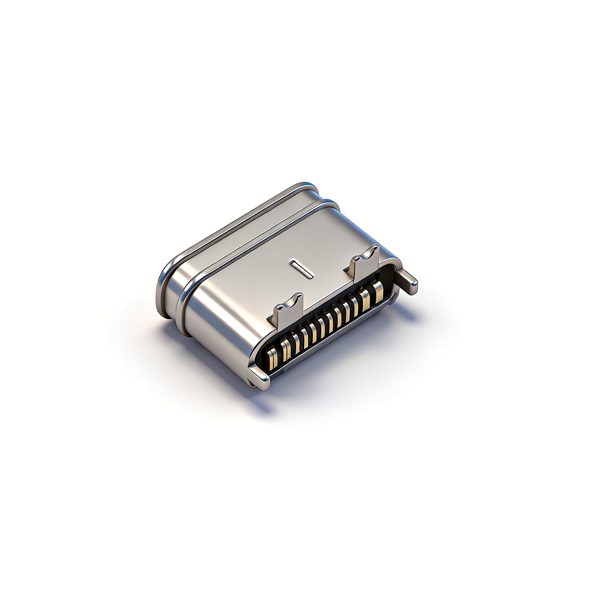

Adaptation & Selection Specifications: This product is an IP67 waterproof 16PIN TYPE-C female connector, which can only be used with standard TYPE-C 16PIN male connectors. It is forbidden to mate with non-standard, customized, damaged, deformed male connectors with foreign objects to prevent damage to the internal structure of the interface, poor contact, short circuit, damage to the waterproof structure, and decline of sealing performance.
Transportation & Handling Specifications: During transportation and production turnover, the original packaging must be kept intact. Severe impact, extrusion and dropping of the tape reel are prohibited to prevent carrier tape deformation, product falling off, vertical pin bending, exposed tongue bump deformation, and waterproof ring falling off and deformation; after the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force from affecting the feeding efficiency and accuracy of the automatic mounter.
