IP68 Waterproof Performance Protection Specifications: When installing the product, ensure that the silicone waterproof ring is intact, undamaged, undeformed and non-aging, and closely fits the sealing surface of the equipment housing. Assemble strictly according to the recommended rubber ring size in the drawing to avoid the failure of waterproof sealing caused by misalignment, extrusion, falling off and twisting of the waterproof ring; it is forbidden to use the product when the waterproof structure and waterproof ring are damaged. After installation, a waterproof sealing test must be carried out to ensure that the protection performance meets the standard.
Mounting & Soldering Specifications: During SMT mounting, it is necessary to ensure the precise alignment of the vertical 4 pins with the PCB pads and through-holes to avoid mounting offset, pad misalignment, pin bending and deformation; the peak temperature of reflow soldering must be strictly controlled within the range of 260℃±5℃, and the high temperature residence time shall not exceed the industry standard, to prevent thermal deformation of the full plastic body, oxidation damage of pin plating, and high temperature aging of the silicone waterproof ring to lose elasticity, which will affect the product performance and waterproof effect.
PCB Layout & Installation Adaptation Requirements: PCB pad size, through-hole aperture and positioning hole position must be designed in strict accordance with the product drawing, and sufficient vertical installation space and waterproof structure assembly space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing; it is recommended that the PCB layout tolerance be controlled within ±0.05mm to ensure the accuracy of vertical insertion, welding firmness and mounting yield.
Mating & Usage Specifications: The male and female connectors must be aligned horizontally during mating, apply force evenly along the axial direction, violent insertion, oblique insertion, shaking insertion and horizontal pulling are prohibited, to prevent vertical pin deformation, shell cracking, pin fracture, waterproof structure loosening and internal contact damage, and avoid affecting the electrical performance, waterproof performance and service life of the product.
Environment & Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases and strong ultraviolet radiation, the storage temperature is controlled at 5℃~35℃, and the relative humidity is ≤75%. Avoid long-term exposure to high temperature, high humidity, acid and alkali corrosion, salt spray environment to prevent aging of the full plastic body, loss of toughness of the silicone waterproof ring, oxidation of the metal plating, and performance attenuation of the contacts; the product should be used as soon as possible after opening, avoid long-term exposed storage affecting the performance of the waterproof ring and electrical contact effect.

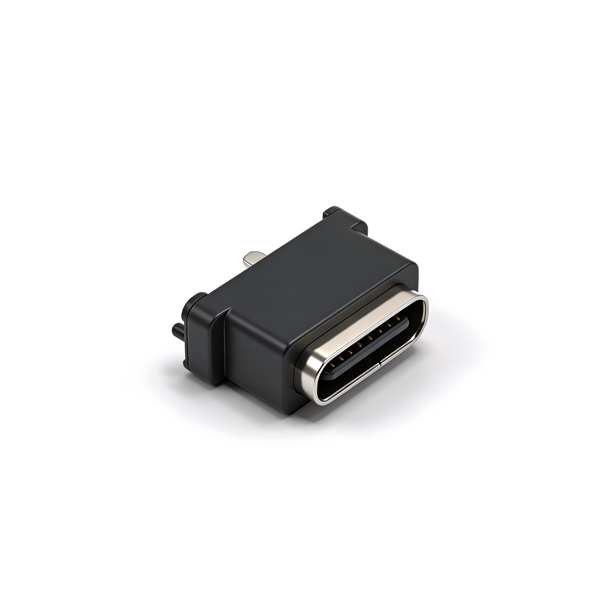

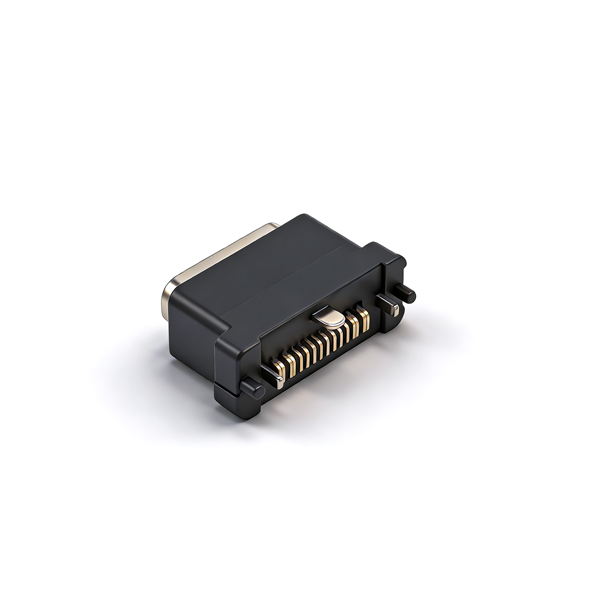

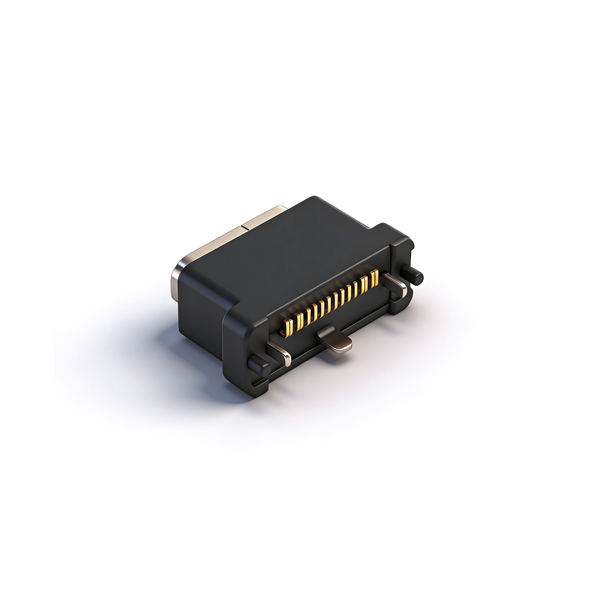

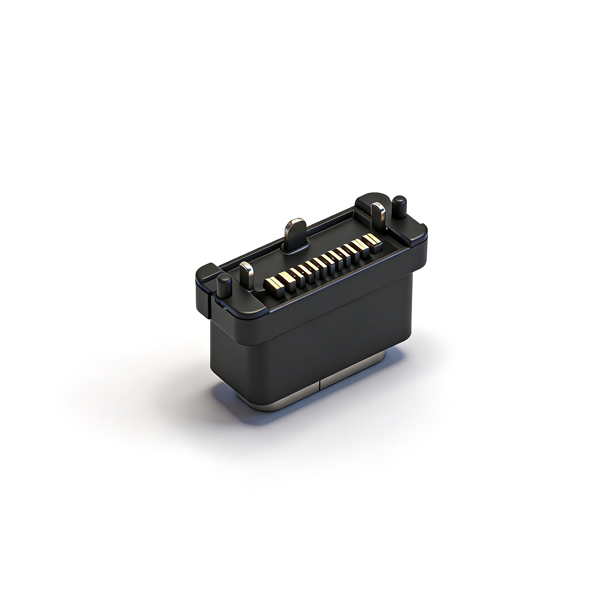

Adaptation & Selection Specifications: This product is an IP68 waterproof 16PIN TYPE-C female connector, which can only be used with standard TYPE-C 16PIN male connectors. It is forbidden to mate with non-standard, customized, damaged, deformed male connectors with foreign objects to prevent damage to the internal structure of the interface, poor contact, short circuit, damage to the waterproof structure, and decline of sealing performance.
Transportation & Handling Specifications: During transportation and production turnover, the original packaging must be kept intact. Severe impact, extrusion and dropping of the tape reel are prohibited to prevent carrier tape deformation, product falling off, vertical pin bending, and waterproof ring falling off and deformation; after the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force from affecting the feeding efficiency and accuracy of the automatic mounter.
