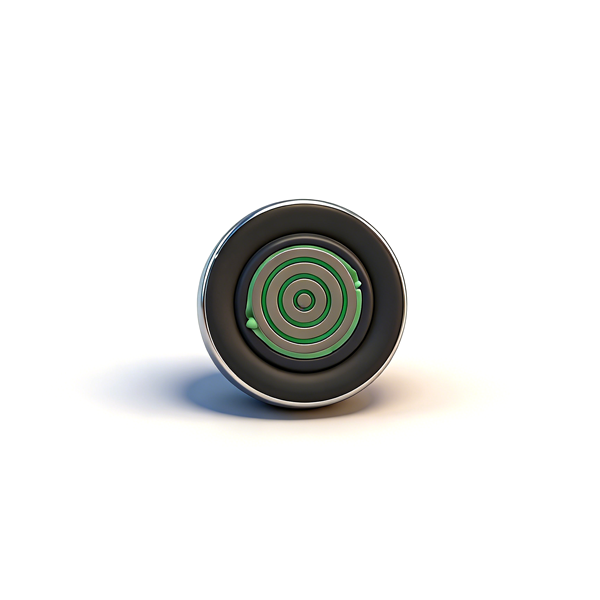

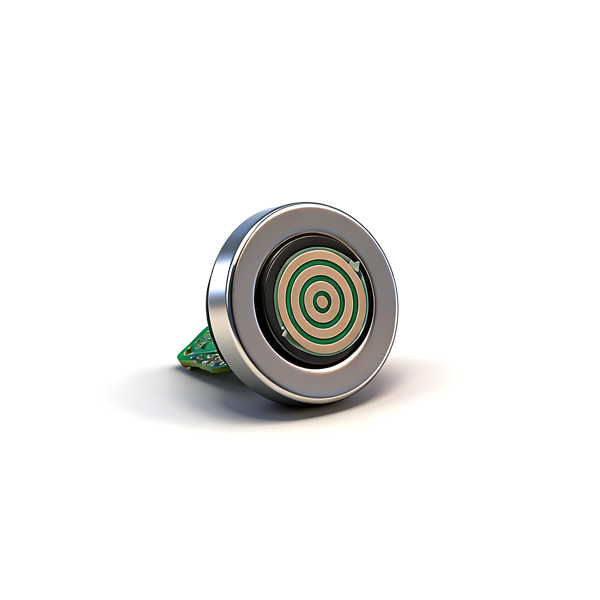

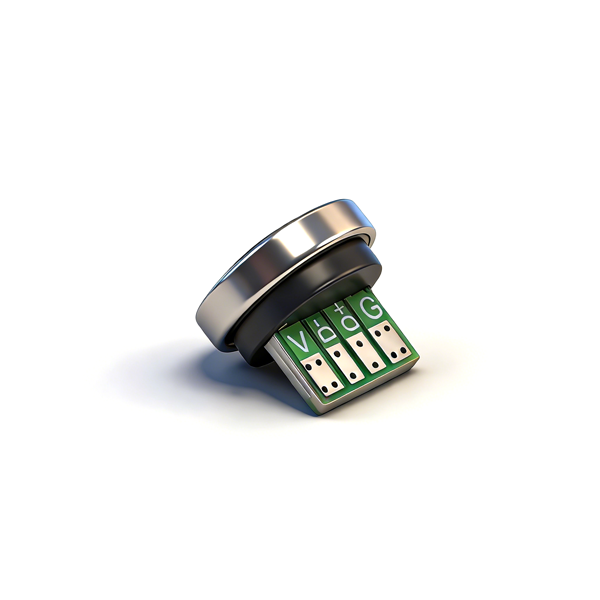

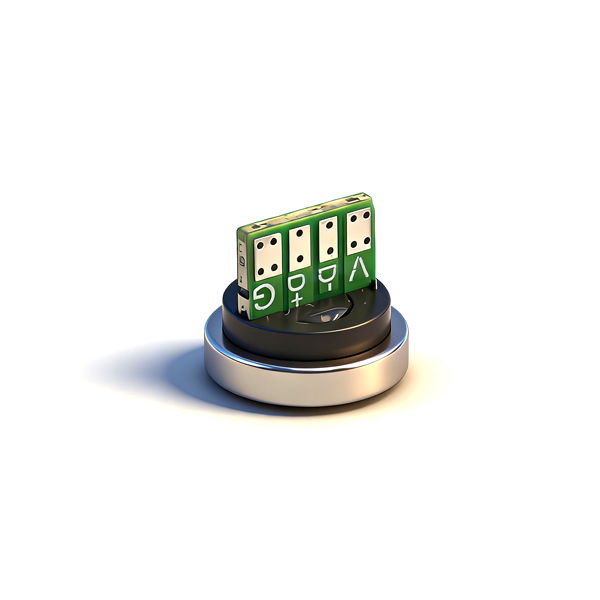

C15M0703A Round Magnetic Male Connector, 7Pin, with PCB, 4 Solder Pads, Customized Data Version

Core Advantages

  • 7PIN Full-Function Data Transmission, Stable Performance: 7PIN core pin configuration, integrated with D+, D- data signals, power and ground pins, supports complete data transmission and power supply functions, with stable signal transmission, low loss, meeting the data interaction needs of various devices.

  • Round Magnetic Suction Structure, Convenient Mating: Integrated round magnetic male plug design, convenient for blind insertion, precise alignment, firm adsorption and not easy to fall off, greatly improving the convenience of use, suitable for high-frequency mating scenarios.

  • On-Board 4-Pad Design, Convenient Soldering & Installation: Built-in PCB board with 4-pad layout, simple soldering operation, firm connection, suitable for automated soldering lines, high installation efficiency, effectively reducing the risk of cold solder and pad falling off.

  • Precise Tolerance Control, Strong Compatibility: Strict tolerance management, regular size ±0.25/±0.35mm, precision size ±0.15mm, angle tolerance ±3°~±4°, high dimensional accuracy, suitable for most magnetic female socket specifications, with strong compatibility.

  • Eco-Compliant, Reliable Quality: Compliant with RoHS and REACH environmental standards, free of harmful substances, no market access barriers; standardized production of new version A, stable quality, suitable for consumer electronics, smart devices and other multi-scenario use.


HOTLINE: 18922973271

CAD Drawing PDF Drawing
Details
Specifications
Precautions

ItemSpecification
Model No.C15M0703A
Product NameRound Magnetic Male Plug 7PIN With PCB 4 Pads Data Type
Core StructureRound Magnetic Structure, 7PIN, Built-in PCB, 4 Pad Design
Core DimensionsBody Diameter 7.000mm, Total Length 9.000mm, Unit mm, Scale 1:1
Pin Function7PIN, including D+, D-, Power, GND, support data & power supply
Version ReleaseNew Release 2024.11.08, Rev. A
ComplianceRoHS Compliant, REACH Compliant

1. Electrical Parameters

  • 7PIN full function configuration, support data + power

  • Integrate D+, D-, V+, GND pins

  • Stable contact, low signal transmission loss

2. Mechanical Parameters

  • Round magnetic male plug with PCB & 4 pads

  • Strong magnetic attraction, precise blind insertion

  • Suitable for automatic soldering & assembly line

3. Dimensions & Tolerance

  • Body Diameter: 7.000mm

  • Total Length: 9.000mm

  • Normal Tolerance: ±0.25mm/±0.35mm

  • Precision Tolerance: ±0.15mm

  • Angle Tolerance: ±3°~±4°

  • Drawing Scale: 1:1, Unit mm

4. Environment & Compliance

  • Compliance: RoHS, REACH

  • No harmful substances, meet market access


  • Soldering & Installation: Align the 4 pad positions during soldering, control soldering temperature and time, avoid high temperature damage to PCB, pins and magnetic structure, prevent cold solder and pad falling off.

  • Magnetic Adaptation: Only use with the same specification magnetic female socket, do not use non-standard socket to avoid magnetic failure and poor contact.

  • Mating Operation: Plug along the axial direction, do not pull or plug violently, avoid pin deformation and magnetic structure damage.

  • Environment & Storage: Avoid long-term use in strong magnetic field, high temperature, high humidity, acid and alkali environment.

  • Transport & Handling: Store in dry, dust-free environment, protect during transport to avoid deformation and damage.
