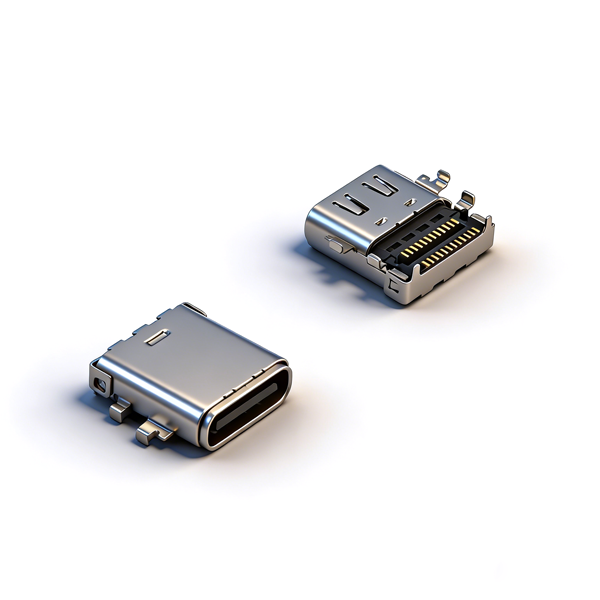

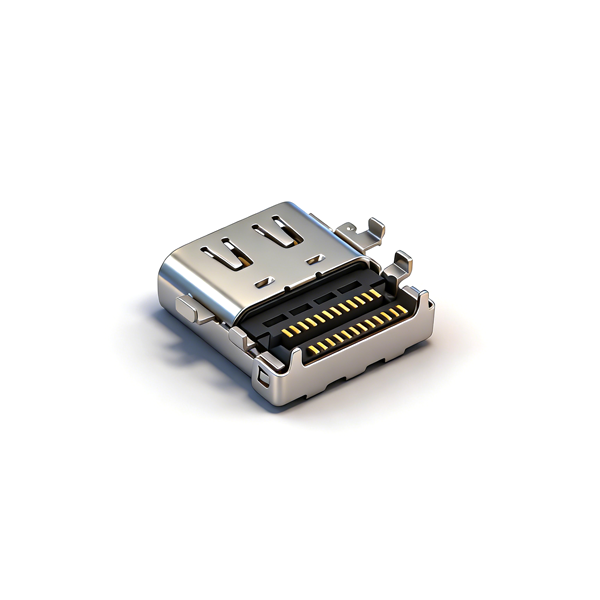

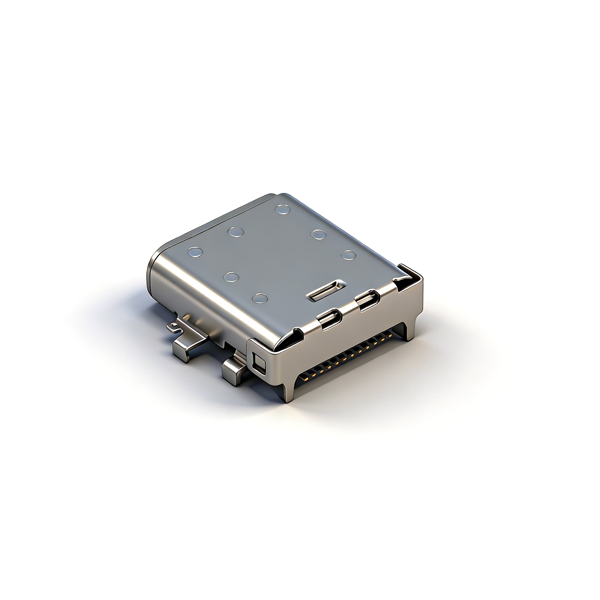

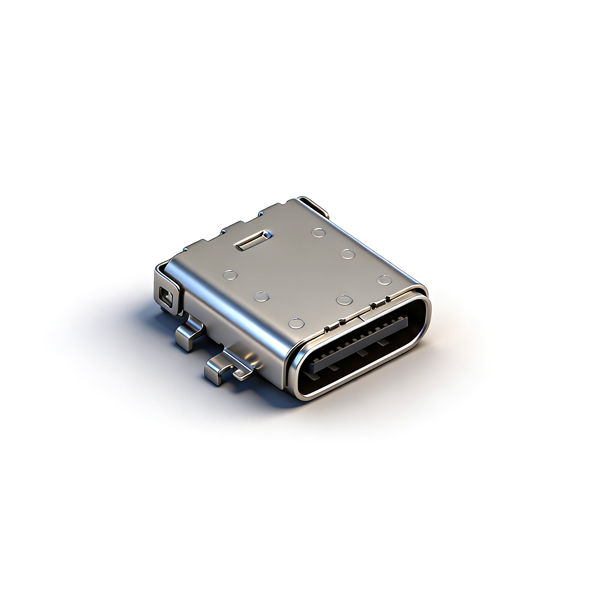

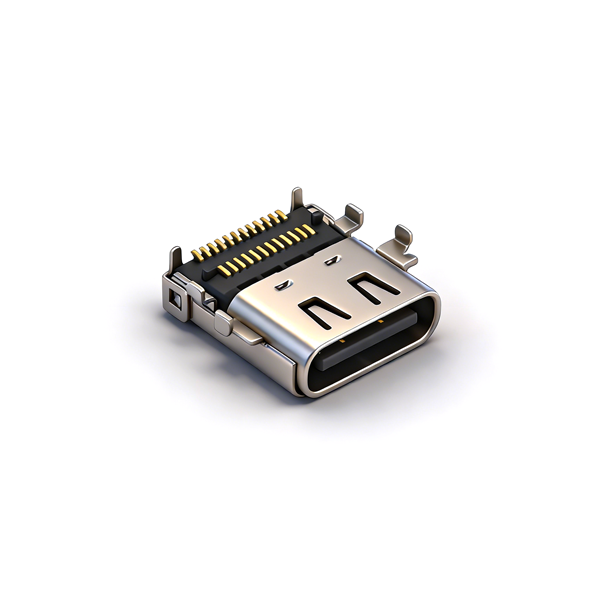

C392407A TYPE C Female Connector 24Pin, Recessed 1.1, 6-Pin Through-Hole SMT+SMT, L=10.05, Double Shell

1.1mm Sink-plate 6-pin Through-hole Welding Specification: The PCB board must be pre-opened with a 1.1mm depth sink-plate groove and corresponding 6-pin through-holes, the tolerance of groove depth and hole diameter must be strictly controlled within ±0.05mm. On-board installation must ensure the 6 pins are fully inserted into the PCB through-holes, and the sink-plate part of the product is fully attached to the PCB surface without warping. Complete DIP wave soldering first then SMT reflow soldering, control the temperature curve to prevent thermal deformation of the plastic housing and oxidation of metal plating.

Double-shell Three-mold Columned Springless Structure Protection Specification: This product adopts sink-plate embedded double-shell three-mold structure. Avoid severe impact, extrusion and dropping during production and use to prevent separation of inner and outer shells and damage to internal structure; prohibit hitting or prying the product shell with hard objects to avoid affecting structural strength and electromagnetic shielding performance.

Sink-plate Structure Installation Space Reservation Requirements: This product is 1.1mm sink-plate designed. The PCB board must reserve a sink-plate groove of corresponding depth, and sufficient male plug insertion and extraction operation space must be reserved above the PCB board to avoid physical interference between the product and surrounding electronic components and equipment housing. The equipment housing opening must strictly match the male plug insertion size and product installation height.

24PIN Full-function Interface Use Specification: This product is a 24PIN full-function TYPE-C female socket, supporting USB3.1 high-speed data transmission and 4K audio and video output. When using, it must be matched with corresponding specification TYPE-C male plugs and cables to ensure high-speed signal transmission quality; avoid using non-standard cables causing signal interference, reduced transmission rate or protocol identification failure.

PCB Layout and High-speed Signal Routing Requirements: PCB sink-plate groove dimensions and 6-pin through-hole diameters must be designed strictly in accordance with the product drawing. It is recommended to control the PCB layout tolerance within ±0.02mm; high-speed signal traces must be designed with impedance matching in accordance with USB3.1 specifications, and differential pair traces must be equal length and equal distance to avoid signal attenuation and crosstalk.

Insertion, Extraction and Use Specification: When inserting and extracting the product, keep the male plug and female socket horizontally aligned and apply force evenly along the axial direction. Violent insertion and extraction, oblique insertion and extraction, shaking insertion and extraction and lateral pulling are prohibited to prevent deformation of sink-plate interface structure, pin bending and damage to internal contacts. It is prohibited to use non-standard, damaged, deformed or foreign matter-containing male plugs for insertion and extraction.

Full Gold-plated Terminal Protection Notes: Both contact area and welding area of product terminals adopt gold plating process, which are easily scratched by sharp objects. Avoid hard objects contacting the plating surface during production and use; prohibit long-term bare storage in corrosive environments such as acid-base and salt spray to prevent plating oxidation and corrosion, which will affect electrical contact performance.

Environmental and Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases, with storage temperature controlled at -40℃~+85℃ and relative humidity ≤75%. The product should be used as soon as possible after opening to avoid oxidation and moisture caused by long-term bare storage, which will affect electrical contact performance and structural strength.

Adaptation and Selection Specification: This product is a 24PIN 1.1mm sink-plate 6-pin through-hole SMT + SMT double-shell three-mold columned springless TYPE-C female socket, and can only be used with matching standard TYPE-C male plugs. When selecting, choose according to equipment PCB thickness, sink-plate depth, installation space and functional requirements, preferentially used for ultra-thin consumer electronics, smart wearables and other scenarios with strict thickness requirements.

Transportation and Turnover Specification: During product transportation and production turnover, keep the original packaging intact. Severe impact, extrusion and dropping of reels are prohibited to prevent carrier tape deformation, product falling off and pin bending deformation. When stacking cartons, operate in accordance with the specification to avoid heavy pressure causing reel deformation and product damage. Anti-static protection must be done during turnover.
