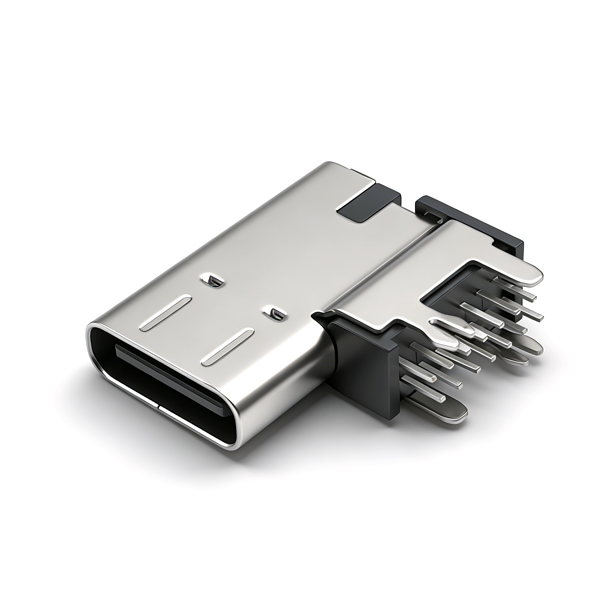

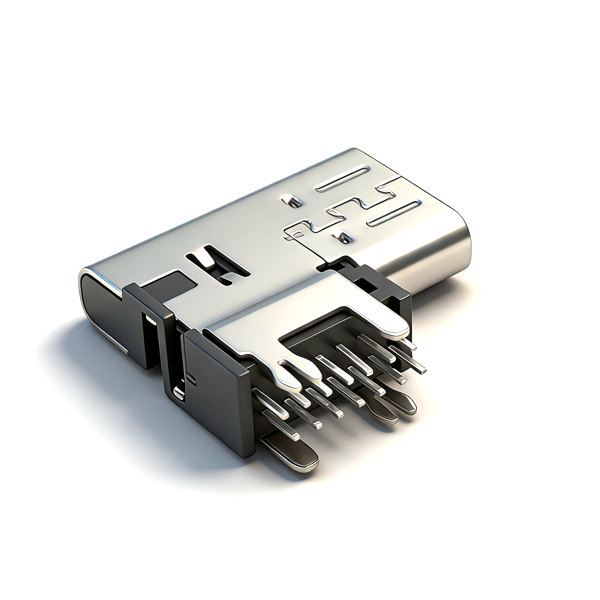

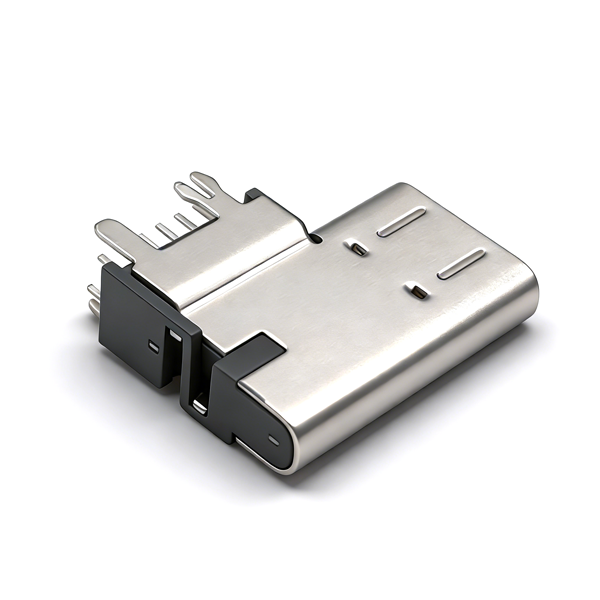

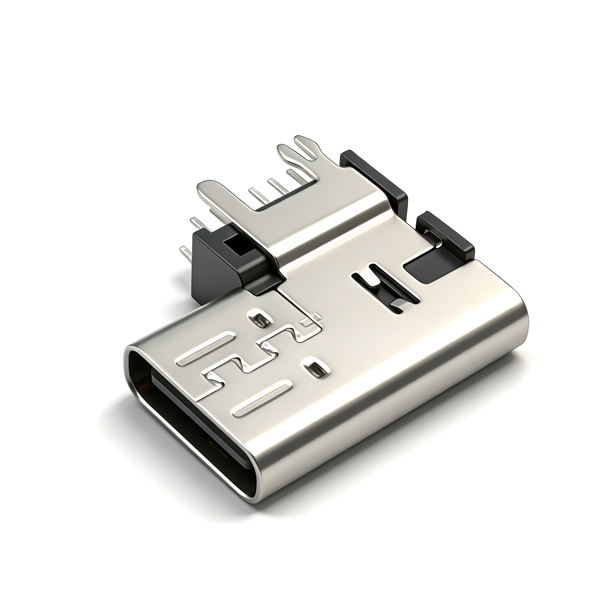

A031409A USB Type C Female Connector 14Pin, Side Entry 4-Pin Through-Hole DIP, L=14.75, Height 2.7, CH=7.3

Side-insert 4-pin Cross Small Foot + Harpoon Pin DIP Welding Specification: PCB pad dimensions, through-hole diameters and positioning hole positions must be designed strictly in accordance with the recommended PCB layout in the drawing. On-board installation must ensure the 4 cross small feet and harpoon pins are fully inserted into the PCB through-holes, ensuring the product is closely attached to the PCB surface after side-insertion, no tilting and no offset. Control the temperature curve during wave soldering to prevent thermal deformation of the plastic housing, oxidation of metal plating and pin cold soldering.

14PIN Interface Use Specification: This product is a 14PIN simplified version TYPE-C female socket, supporting basic power supply and USB2.0 data transmission. When using, it must be matched with corresponding specification TYPE-C male plugs and cables to ensure stable power supply and normal data transmission; avoid using non-standard cables causing abnormal heating, reduced charging speed or signal interference.

Plating Layer Protection Notes: The gold plating layer of contact terminals is easily scratched by sharp objects. Avoid hard objects contacting the plating surface during production and use; prohibit long-term bare storage in corrosive environments such as acid-base and salt spray to prevent plating oxidation and corrosion, which will affect electrical contact performance.

PCB Layout and Equipment Adaptation Requirements: PCB pad dimensions and through-hole diameters must be designed strictly in accordance with the product drawing, and sufficient side-insert installation space and male plug insertion and extraction operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing. It is recommended to control the PCB layout tolerance within ±0.05mm to ensure the accuracy and firmness of side-insert pin welding.

Insertion, Extraction and Use Specification: When inserting and extracting the product, keep the male plug and female socket horizontally aligned and apply force evenly along the axial direction. Violent insertion and extraction, oblique insertion and extraction, shaking insertion and extraction and lateral pulling are prohibited to prevent bending of side-insert interface pins, housing cracking and damage to internal contacts. It is prohibited to use non-standard, damaged, deformed or foreign matter-containing male plugs for insertion and extraction.

PE Vacuum Box Packaging and Storage Specification: This product adopts PE vacuum box independent packaging. Check whether the vacuum packaging is intact before opening. If there is air leakage or damage, handle it in time. The product should be used as soon as possible after opening to avoid oxidation and moisture caused by long-term bare storage. The storage environment must be kept dry, dust-free and free of corrosive gases, with temperature controlled at 5℃~35℃ and relative humidity ≤75%.

Adaptation and Selection Specification: This product is a 14PIN side-insert 4-pin cross small foot + harpoon pin DIP TYPE-C female socket, and can only be used with matching standard TYPE-C male plugs. When selecting, choose according to equipment installation space and functional requirements. It is suitable for consumer electronics and industrial equipment scenarios that are cost-sensitive and only require basic power supply and USB2.0 data transmission.

Transportation and Turnover Specification: During product transportation and production turnover, keep the original packaging intact. Severe impact, extrusion and dropping of cartons are prohibited to prevent vacuum box damage, product falling off and pin bending deformation. When stacking cartons, operate in accordance with the specification to avoid heavy pressure causing vacuum box deformation and product damage. Anti-static protection must be done during turnover.
