Side-mount 4-bent Harpoon Pin SMT Mounting and Soldering Specification: PCB pad dimensions, harpoon pin through-hole diameters and positioning hole positions must be designed strictly in accordance with the recommended PCB layout in the drawing. On-board installation must ensure the 4-bent harpoon pins are fully inserted into the PCB through-holes, ensuring the product is closely attached to the PCB surface after side-mounting, no tilting and no offset. During SMT mounting, ensure the harpoon pins are fully aligned with the pads to avoid mounting offset, pin bending and pad cold soldering. Control the temperature curve during reflow soldering to prevent thermal deformation of the plastic housing and oxidation of metal plating.
24PIN Full-function Interface Use Specification: This product is a 24PIN full-function TYPE-C female socket, supporting USB3.1 high-speed data transmission and audio and video output. When using, it must be matched with corresponding specification TYPE-C male plugs and cables to ensure high-speed signal transmission quality; avoid using non-standard cables causing signal interference, reduced transmission rate or protocol identification failure.
Side-mount Installation Space Reservation Requirements: This product is side-mount installed. Sufficient installation space and male plug insertion and extraction operation space must be reserved on the edge of the PCB board to avoid physical interference between the product and surrounding electronic components and equipment housing. The equipment housing opening must strictly match the male plug insertion size and the product side-mount installation height to avoid interference damage to the interface during insertion and extraction.
PCB Layout and Equipment Adaptation Requirements: PCB pad dimensions and harpoon pin through-hole diameters must be designed strictly in accordance with the product drawing. It is recommended to control the PCB layout tolerance within ±0.05mm to ensure the accuracy of side-mount harpoon pin insertion and welding firmness. High-speed signal traces must be designed with impedance matching in accordance with USB3.1 specifications to avoid signal attenuation.
Insertion, Extraction and Use Specification: When inserting and extracting the product, keep the male plug and female socket horizontally aligned and apply force evenly along the axial direction. Violent insertion and extraction, oblique insertion and extraction, shaking insertion and extraction and lateral pulling are prohibited to prevent deformation of side-mount interface harpoon pins, housing cracking and damage to internal contacts. It is prohibited to use non-standard, damaged, deformed or foreign matter-containing male plugs for insertion and extraction.
Tape and Reel Packaging and Automatic Feeding Specification: This product adopts standard tape and reel packaging. The carrier tape peeling angle must be controlled within 165°~180°. When feeding with a fully automatic placement machine, strictly control the nozzle position and suction force to avoid product offset and pin deformation caused by excessive nozzle pressure. After the tape is opened, avoid pulling and bending the carrier tape.
Environmental and Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases, with storage temperature controlled at 5℃~35℃ and relative humidity ≤75%. Avoid long-term exposure to high temperature and high humidity environments. The product should be used as soon as possible after opening to avoid long-term bare storage affecting electrical contact performance.

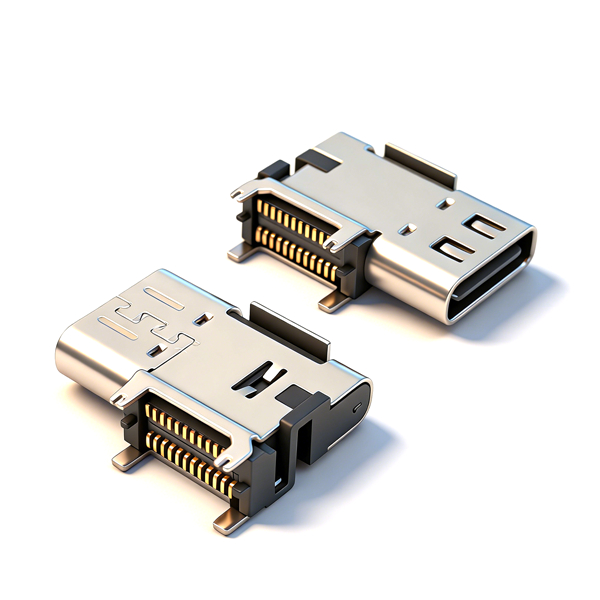

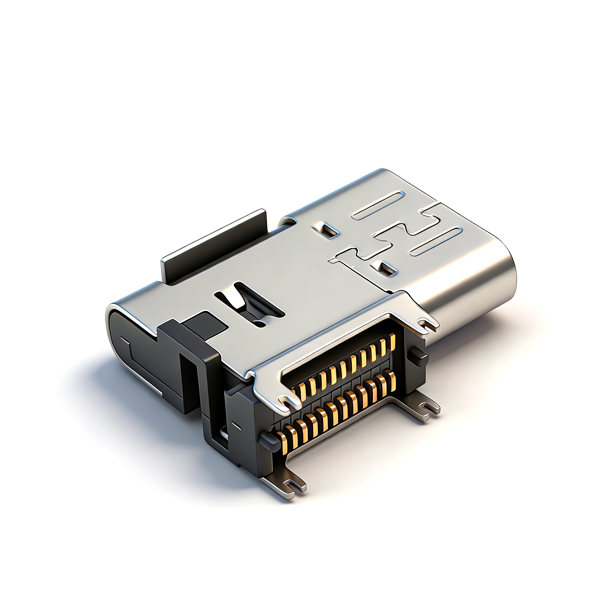

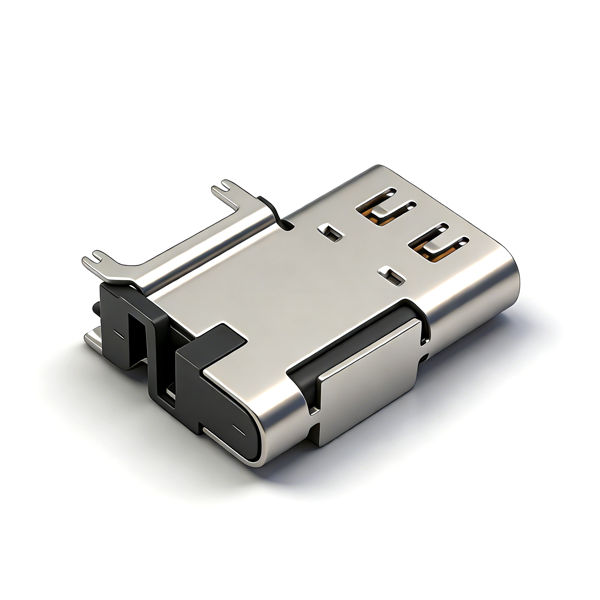

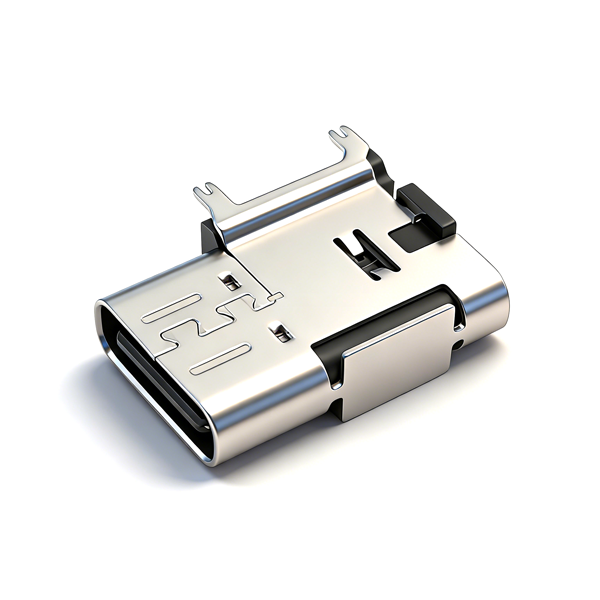

Adaptation and Selection Specification: This product is a 24PIN side-mount 4-bent harpoon pin through-hole TYPE-C female socket, compatible with 1.00mm thickness PCB board, and can only be used with matching standard TYPE-C male plugs. When selecting, choose according to equipment PCB thickness, installation space and functional requirements, preferentially used for ultra-thin equipment and consumer electronics with side interface design.
Transportation and Turnover Specification: During product transportation and production turnover, keep the original packaging intact. Severe impact, extrusion and dropping of reels are prohibited to prevent carrier tape deformation, product falling off and harpoon pin bending deformation. When stacking cartons, operate in accordance with the specification of 10 reels/layer to avoid heavy pressure causing reel deformation and product damage. Anti-static protection must be done during turnover.
