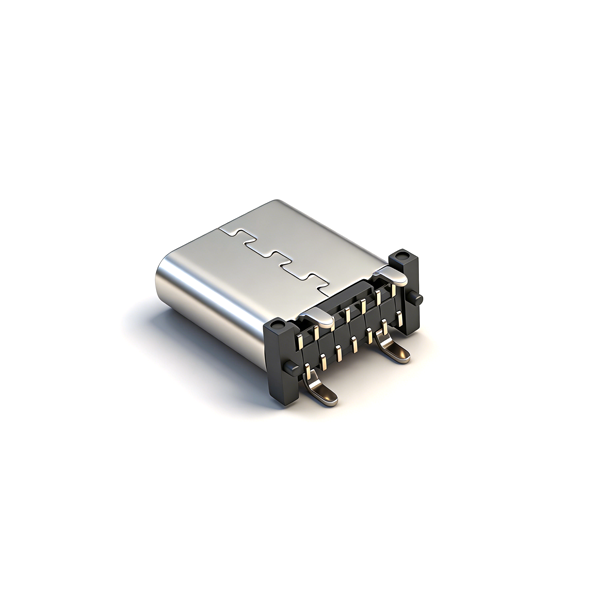

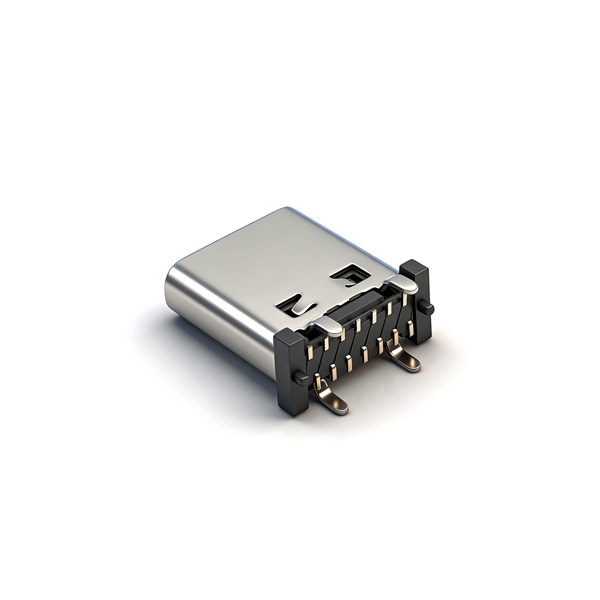

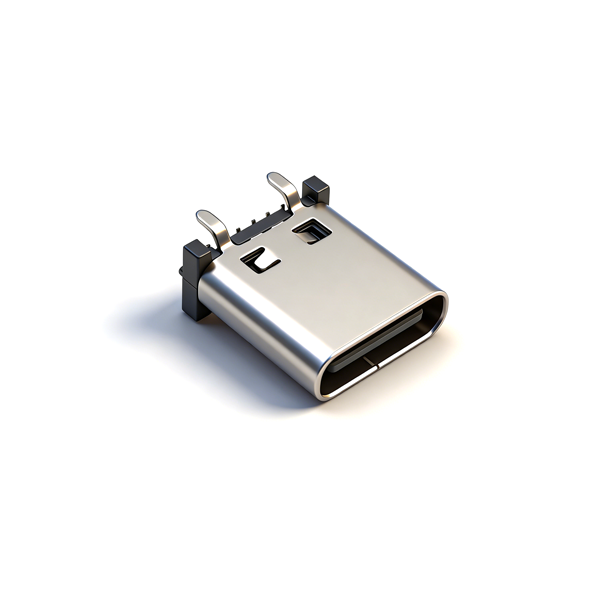

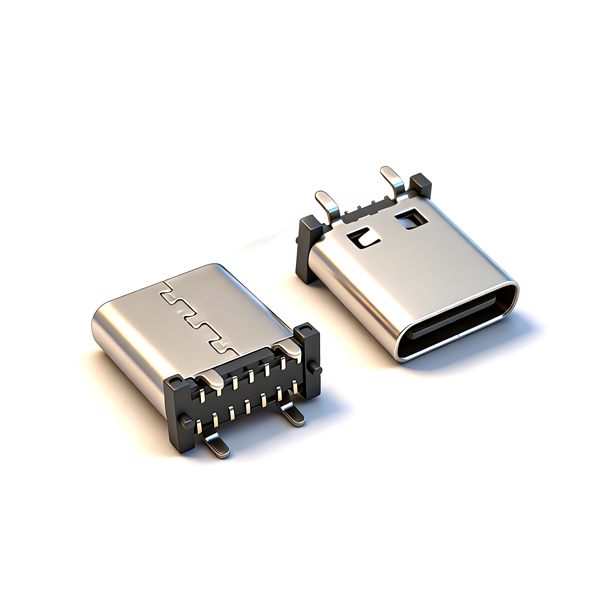

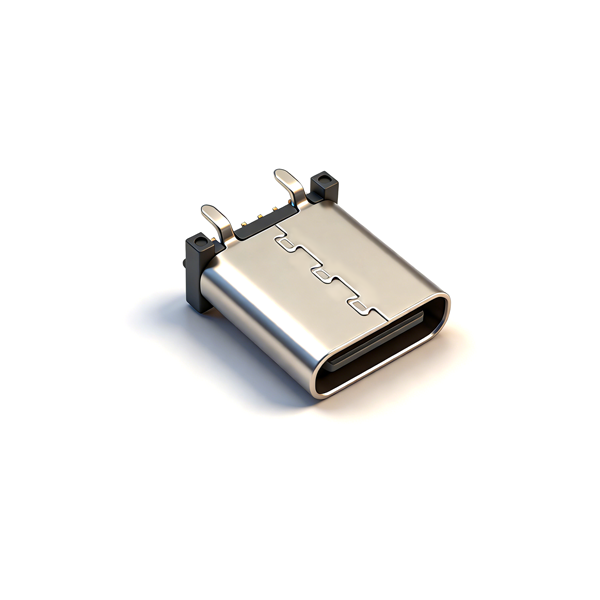

A031416A USB Type C Female Connector 14Pin, Vertical 4-Pin Through-Hole SMT, L=8.0/8.2/8.6/9.3/10.0/10.5

Structural Design：Vertical 4-pin SMT through-board structure, overall length 10.0mm, key dimensions include 0.70±0.05mm, 1.20±0.05mm, 4.45±0.10mm, etc., overall precise and compact dimensions; vertical installation adapts to the vertical interface needs of devices, balancing structural stability and space compatibility, avoiding interference with other components on the PCB board, suitable for the interface layout of various electronic devices.

Pin Layout：14PIN core pins are laid out in accordance with Type-C specifications, fully covering functions such as power supply (VBUS), grounding (GND), configuration channels (CC1/CC2), data transmission (D+/D-, Dp2/Dn2), scientific pin distribution, ensuring stable realization of basic functions and reliable transmission performance.

Core Materials：Terminals are made of high-conductivity metal materials with multi-layer plating process, featuring excellent electrical conductivity and anti-oxidation performance; insulating components are made of high-temperature resistant insulating material with high mechanical strength and aging resistance; overall materials comply with relevant standards, no blistering, glue melting, discoloration and other defects (deformation within tolerance), ensuring long-term use reliability.

Process & Environmental Protection：PCB layout tolerance ±0.05mm, suitable for automated mounting lines, SMT process ensures efficient and precise soldering; tape and reel packaging design, carrier tape specifications W=24mm, T=0.50mm, P=12.0mm, top tape specifications W=20.7mm, T=0.05mm, 5000PCS/reel; 10 reels/carton for transportation with perfect protection; fully compliant with RoHS and REACH environmental standards, meeting market access requirements and mass production needs.

Electrical Parameters：14PIN core configuration, insulation resistance ≥100MΩ; Terminal contact points gold-plated ≥3u", underplated with nickel ≥40u"

Mechanical Parameters：Vertical 4-pin through-board SMT process; Insertion force 5~20N; Mating durability suitable for high-frequency use scenarios (≥10,000 cycles with reference to the same series)

Physical Dimensions：Unit mm, ratio 1:1; Overall length 10.0mm; Key dimension tolerances X.xxx±0.10mm, X.xx±0.15mm, X.x±0.20mm, angle tolerance ±2°; Adapted to PCB thickness of 1.00mm

Process Requirements：SMT mounting, recommended PCB layout tolerance ±0.05mm

Environmental Standards：Compliant with RoHS & REACH

Packaging Specifications：Tape and reel packaging, 5000PCS/reel; 10 reels/carton, carton size 390mm390mm310mm, triangular pads at four corners for protection

Mounting & Soldering：Ensure precise alignment of the four pins with PCB pads during mounting, avoiding skew; strictly control temperature and duration during SMT soldering to prevent damage to terminal plating and housing material by high temperature, ensuring firm soldering without cold solder.

PCB Layout：Strictly follow the PCB layout tolerance of ±0.05mm to ensure precise mounting positions of the four pins, avoiding unstable mounting and poor contact caused by layout deviation.

Mating Norms：Apply even external force during insertion (adapting to the 5~20N insertion force range), prohibit violent operation to avoid pin deformation and terminal wear, preventing reduced electrical conductivity and shortened mating life.

Environmental Restrictions：Do not use in harsh environments such as extreme temperatures, strong acid and alkali to prevent oxidation of metal components and aging of insulating materials, affecting product performance and service life.

Male Connector Compatibility：Only use with standard Type-C 14PIN male connectors, prohibit insertion and extraction with non-standard male connectors to prevent interface damage and abnormal contact, affecting power supply and transmission effects.

Storage & Transportation：Store in a dry, ventilated environment without corrosive gas to avoid terminal oxidation and housing moisture absorption; transport in stacked arrangement with triangular pads as required to prevent reel extrusion deformation and ensure intact packaging.
