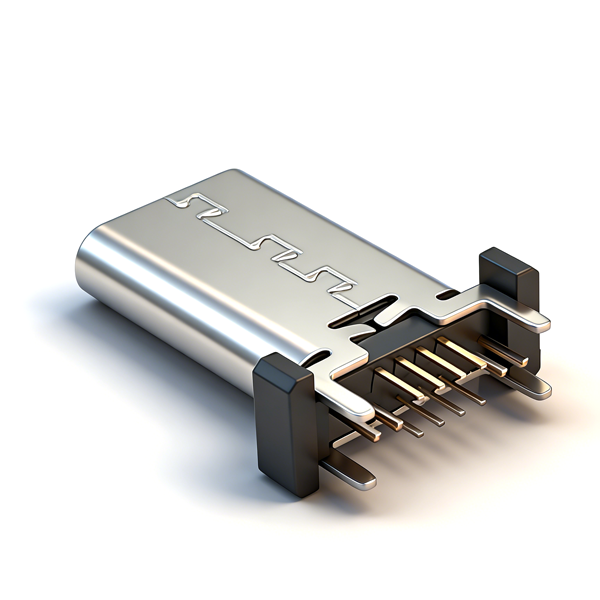

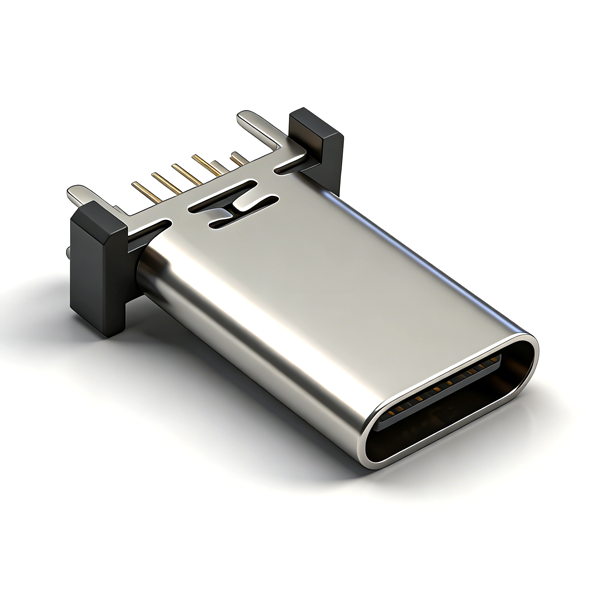

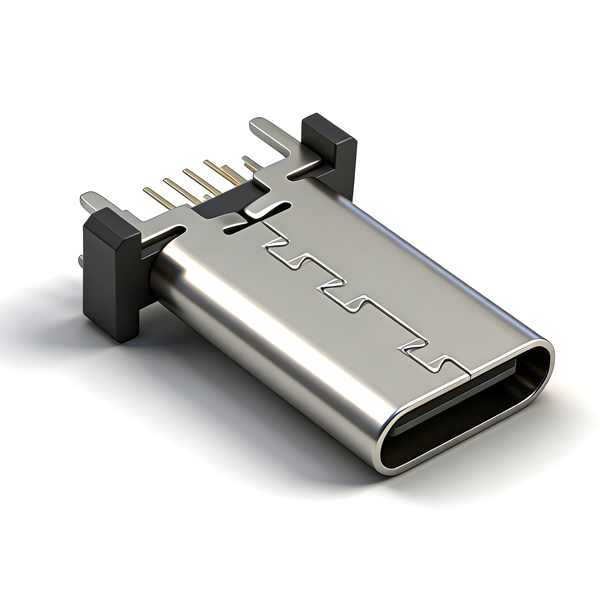

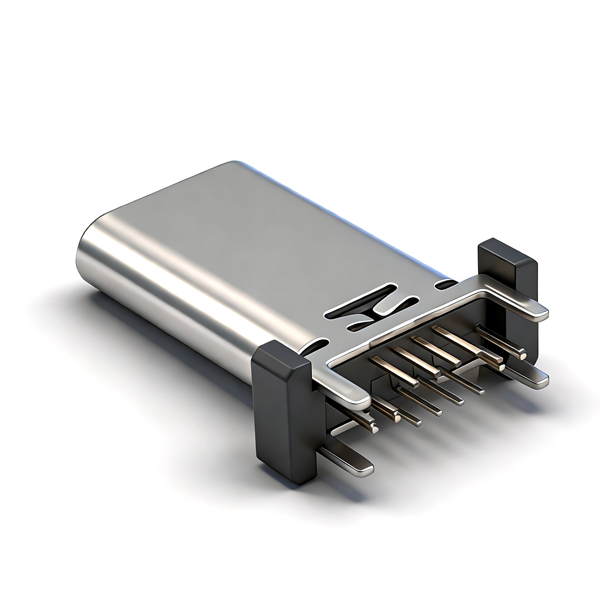

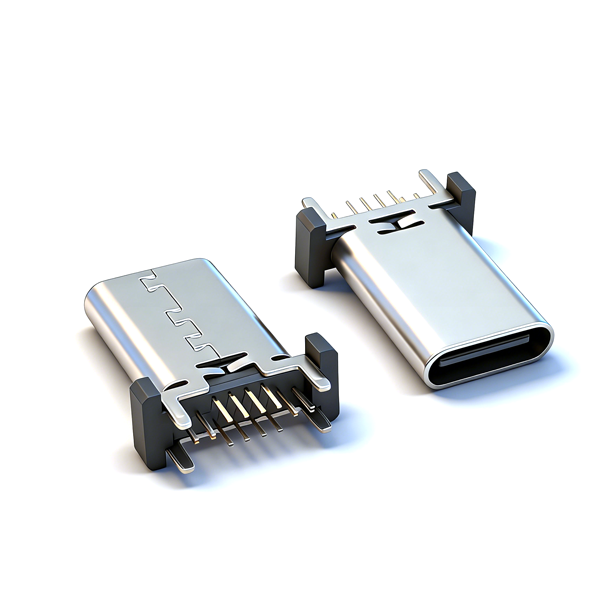

A031617A USB Type C Female Connector 16Pin, Vertical 4-Pin Through-Hole DIP, L=8.8/9.3/10.0/10.5/12.4/13.1/13.7/15.0/16.5/17.5/18.5/19.6/20.5/24.5

Vertical 4-pin Through-hole DIP Installation and Soldering Specification: PCB pad dimensions, through-hole diameters and positioning hole positions must be designed strictly in accordance with the recommended PCB layout in the drawing. On-board installation must ensure the 4 through-hole pins are fully inserted into the PCB through-holes, ensuring the product is perpendicular to the PCB surface after installation, no tilting and no offset. During DIP wave soldering, control the welding temperature and time to avoid pin cold soldering and solder bridging. The reflow soldering peak temperature must be strictly controlled within 260℃±5℃, and the high-temperature residence time shall not exceed 10 seconds to prevent thermal deformation of LCP plastic housing and oxidation of metal plating.

Special Specification for 5A High Current Use: The rated maximum current of this product is 5.0A. When using, it is necessary to strictly match the corresponding wire diameter conductors and PCB pad design to ensure the current-carrying capacity of the high-current transmission path and avoid overload use. When working with high current for a long time, heat dissipation design must be done to prevent problems such as decreased insulation performance, plastic housing aging and welding point cracking caused by excessive product temperature rise.

Plating Layer and Tin Adhesion Protection Notes: The gold plating layer of contact terminals and nickel plating layer of the shell are easily scratched by sharp objects. Avoid hard objects contacting the plating surface during production and use; pin tin adhesion ≥95%, ensure the pin surface is clean and free of oxidation before welding to avoid affecting welding quality; prohibit long-term bare storage in corrosive environments such as acid-base and salt spray.

PCB Layout and Equipment Adaptation Requirements: PCB pad dimensions and through-hole diameters must be designed strictly in accordance with the product drawing, and sufficient vertical installation space and male plug insertion and extraction operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing. It is recommended to control the PCB layout tolerance within ±0.05mm to ensure the accuracy of DIP through-hole installation and welding firmness. The equipment housing opening must strictly match the male plug insertion size and the product vertical installation height.

Insertion, Extraction and Use Specification: When inserting and extracting the product, keep the male plug and female socket horizontally aligned and apply force evenly along the axial direction. Violent insertion and extraction, oblique insertion and extraction, shaking insertion and extraction and lateral pulling are prohibited to prevent bending of vertical interface pins, housing cracking and damage to internal contacts. It is prohibited to use non-standard, damaged, deformed or foreign matter-containing male plugs for insertion and extraction to prevent damage to the internal structure of the interface and scratching of the contact gold plating.

Tape and Reel Packaging and Automatic Feeding Specification: This product adopts 2400PCS/reel tape and reel packaging. The carrier tape peeling angle must be controlled within 165°~180°. When feeding with a fully automatic insertion machine/placement machine, strictly control the nozzle position and suction force to avoid vertical product tipping and pin offset caused by excessive nozzle pressure. After the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force, product falling off and pin damage.

Environmental and Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases, with storage temperature controlled at 5℃~35℃ and relative humidity ≤75%. Avoid long-term exposure to high temperature, high humidity and salt spray environments to prevent oxidation and corrosion of metal plating. The product should be used as soon as possible after opening to avoid long-term bare storage affecting electrical contact performance and welding quality.

Adaptation and Selection Specification: This product is a 16PIN vertical 4-pin through-hole DIP TYPE-C female socket with a total length of 15.0mm, and can only be used with matching standard TYPE-C male plugs. When selecting, choose according to equipment installation space, current demand and functional demand, preferentially used in industrial and automotive scenarios with high welding reliability requirements. It is prohibited to assemble and use with non-standard and size-mismatched male plugs/equipment.

Transportation and Turnover Specification: During product transportation and production turnover, keep the original packaging intact. Severe impact, extrusion and dropping of reels are prohibited to prevent carrier tape deformation, vertical product tipping and pin bending deformation. When stacking cartons, operate in accordance with the specification of 8 reels/layer to avoid heavy pressure causing reel deformation and product damage. Anti-static protection must be done during turnover.
