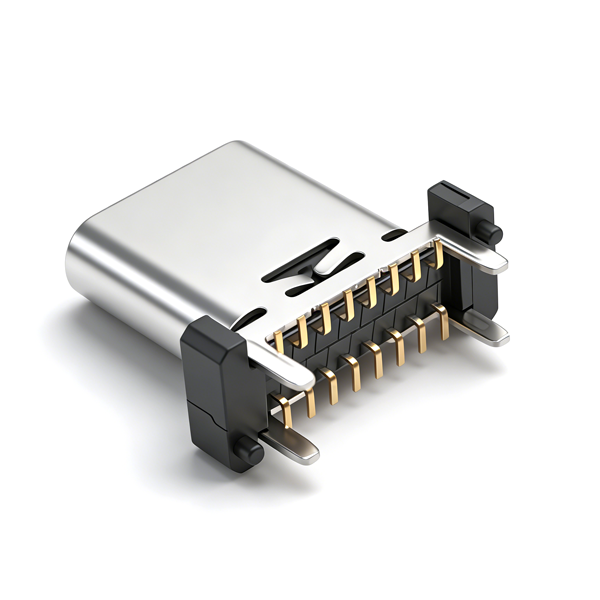

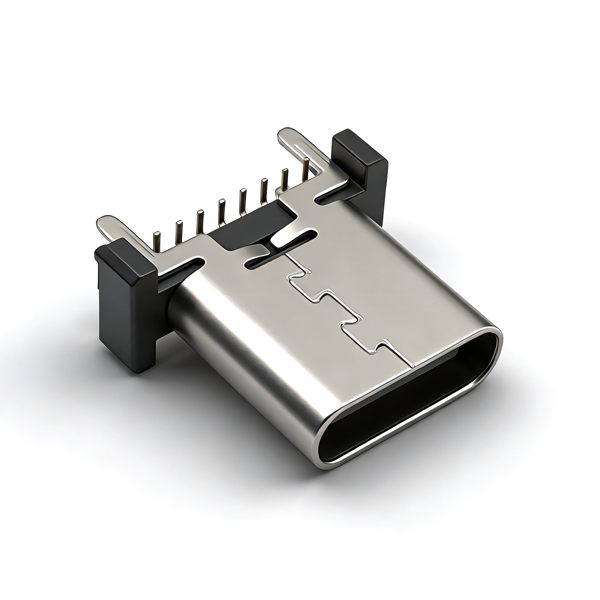

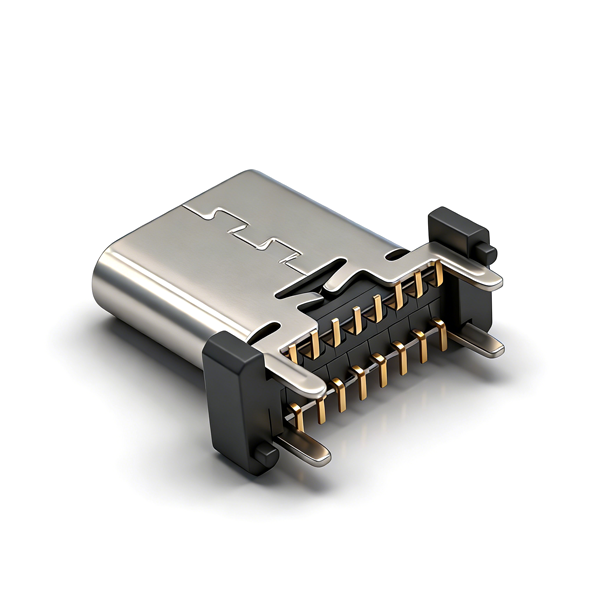

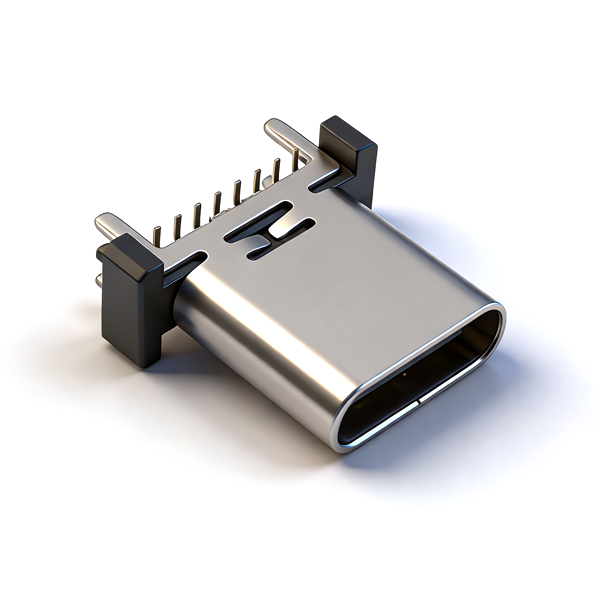

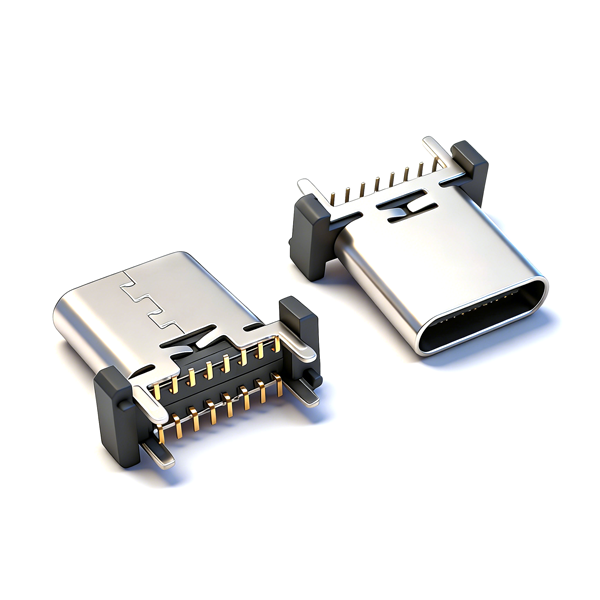

A031608A USB Type C Female Connector 16Pin, Vertical 4-Pin Through-Hole SMT, L=8.8/9.3/10.0/10.5/12.4/13.1/13.7/15.0/17.5

Vertical 4-pin Through-hole SMT Mounting and Soldering Specification: PCB pad dimensions, through-hole diameters and positioning hole positions must be designed strictly in accordance with the recommended PCB layout in the drawing. On-board installation must ensure accurate alignment of the 4 through-hole pins with the PCB through-holes, ensuring the product is perpendicular to the PCB surface after installation, no tilting and no offset. During SMT mounting, ensure the 4 through-hole pins are fully inserted into the holes, and the surface mount feet are fully attached to the pads to avoid mounting offset, pin bending and pad cold soldering. Control the temperature curve during reflow soldering to prevent thermal deformation of the plastic housing, oxidation of metal plating and damage to pin contact gold plating.

16PIN Interface Use Specification: This product is a 16PIN TYPE-C female socket, supporting USB2.0 data transmission and fast charging protocol identification. When using, it must be matched with corresponding specification TYPE-C male plugs and cables to ensure stable data transmission and normal fast charging protocol identification; avoid using non-standard cables causing signal interference, reduced transmission rate or abnormal charging.

Plating Layer Protection Notes: The gold plating layer of contact terminals and nickel plating layer of the shell are easily scratched by sharp objects. Avoid hard objects contacting the plating surface during production and use; prohibit long-term bare storage in corrosive environments such as acid-base and salt spray to prevent plating oxidation and corrosion, which will affect electrical contact performance and protection effect.

PCB Layout and Equipment Adaptation Requirements: PCB pad dimensions and through-hole diameters must be designed strictly in accordance with the product drawing, and sufficient vertical installation space and male plug insertion and extraction operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing. It is recommended to control the PCB layout tolerance within ±0.05mm to ensure the accuracy of vertical through-hole mounting and welding firmness. The equipment housing opening must strictly match the male plug insertion size and the product vertical installation height to avoid interference damage to the interface during insertion and extraction.

Insertion, Extraction and Use Specification: When inserting and extracting the product, keep the male plug and female socket horizontally aligned and apply force evenly along the axial direction. Violent insertion and extraction, oblique insertion and extraction, shaking insertion and extraction and lateral pulling are prohibited to prevent bending of vertical interface pins, housing cracking and damage to internal contacts. It is prohibited to use non-standard, damaged, deformed or foreign matter-containing male plugs for insertion and extraction to prevent damage to the internal structure of the interface and scratching of the contact gold plating.

Large-capacity Tape and Reel Packaging and Automatic Feeding Specification: This product adopts 5000PCS/reel super large-capacity tape and reel packaging. The carrier tape peeling angle must be controlled within 165°~180°. When feeding with a fully automatic placement machine, strictly control the nozzle position and suction force to avoid vertical product tipping and pin offset caused by excessive nozzle pressure. After the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force, product falling off and pin damage.

Environmental and Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases. Avoid long-term exposure to high temperature, high humidity and salt spray environments to prevent oxidation and corrosion of metal plating. The product should be used as soon as possible after opening to avoid long-term bare storage affecting electrical contact performance and plating protection effect.

Adaptation and Selection Specification: This product is a 16PIN vertical 4-pin through-hole TYPE-C female socket, and can only be used with matching standard TYPE-C male plugs. When selecting, choose according to equipment installation space, functional requirements and working environment. It is prohibited to assemble and use with non-standard and size-mismatched male plugs/equipment.

Transportation and Turnover Specification: During product transportation and production turnover, keep the original packaging intact. Severe impact, extrusion and dropping of reels are prohibited to prevent carrier tape deformation, vertical product tipping and pin bending deformation. When stacking cartons, operate in accordance with the specification of 10 reels/layer to avoid heavy pressure causing reel deformation and product damage. Anti-static protection must be done during turnover.
