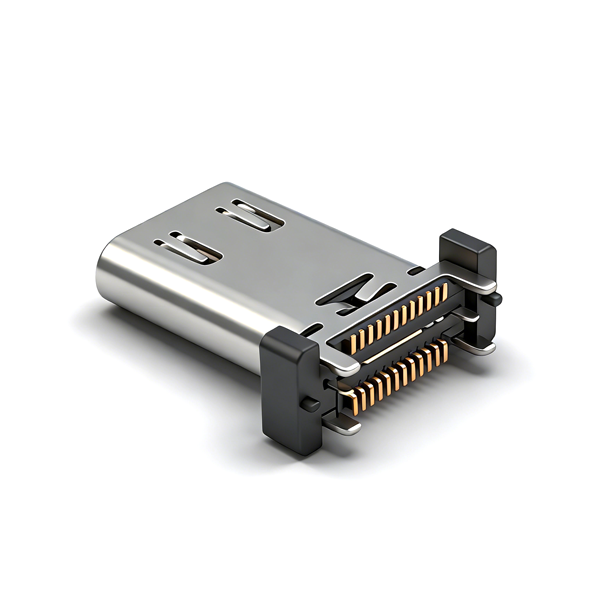

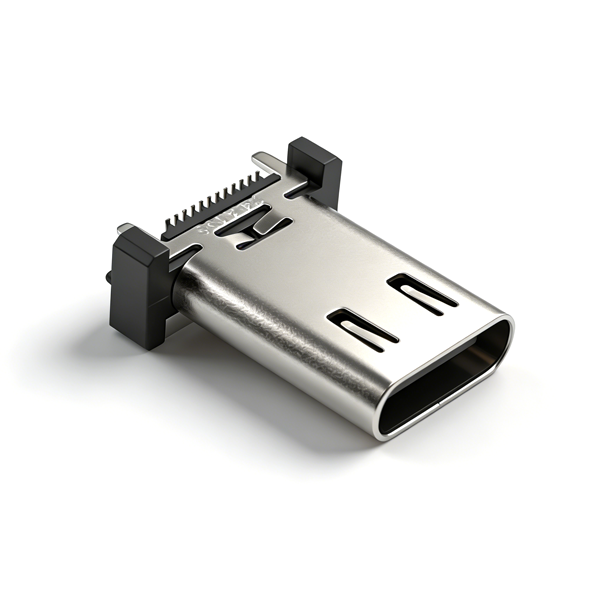

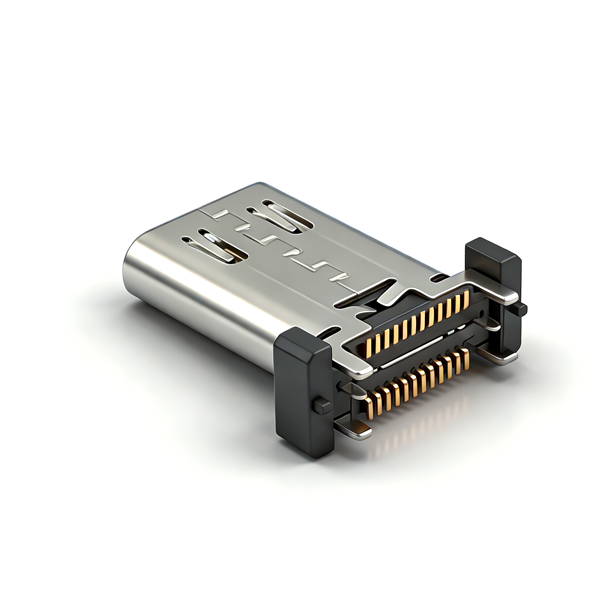

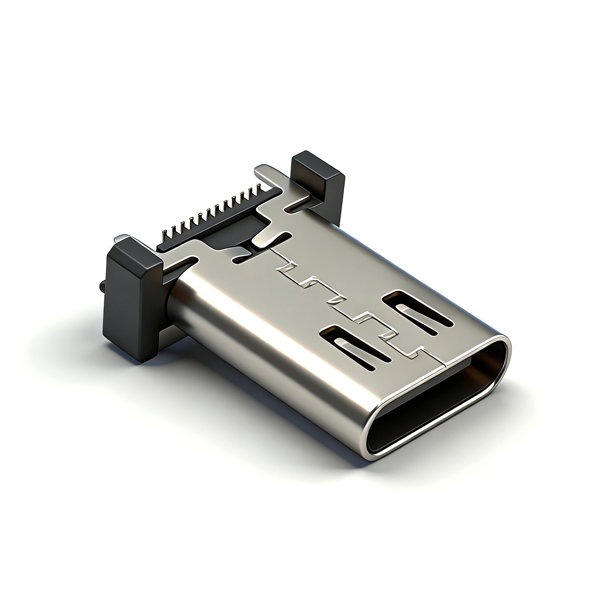

A032403A USB Type C Female Connector 24Pin, Vertical 4-Pin Through-Hole SMT, L=10.0/10.5/11.5/12.0/12.4/13.0/13.5/14.5/15.0

Vertical 4-pin Through-hole SMT Mounting and Soldering Specification: PCB pad dimensions, through-hole diameters and positioning hole positions must be designed strictly in accordance with the recommended PCB layout in the drawing. On-board installation must ensure accurate alignment of the 4 through-hole pins with the PCB through-holes, ensuring the product is perpendicular to the PCB surface after installation, no tilting and no offset. During SMT mounting, ensure the 4 through-hole pins are fully inserted into the holes, and the surface mount feet are fully attached to the pads to avoid mounting offset, pin bending and pad cold soldering. The reflow soldering peak temperature must be strictly controlled within 260℃±5℃, and the high-temperature residence time shall not exceed 10 seconds to prevent thermal deformation of the plastic housing, oxidation of metal plating and damage to pin contact gold plating.

24PIN Full-function Interface Use Specification: This product is a 24PIN full-function TYPE-C female socket, supporting USB3.1 high-speed data transmission and audio and video output. When using, it must be matched with corresponding specification TYPE-C male plugs and cables to ensure high-speed signal transmission quality; avoid using non-standard cables causing signal interference, reduced transmission rate or protocol identification failure.

Ultra-wide Temperature Environment Use Notes: This product can work in the environment of -40℃~+85℃. When using in extreme low or high temperature environments, ensure the overall heat dissipation and heat preservation design of the equipment is reasonable to avoid structural stress changes and welding point cracking caused by sudden temperature changes.

PCB Layout and Equipment Adaptation Requirements: PCB pad dimensions and through-hole diameters must be designed strictly in accordance with the product drawing, and sufficient vertical installation space and male plug insertion and extraction operation space must be reserved to avoid physical interference between the product and surrounding electronic components and equipment housing. It is recommended to control the PCB layout tolerance within ±0.05mm to ensure the accuracy of vertical through-hole mounting and welding firmness. The equipment housing opening must strictly match the male plug insertion size and the product vertical installation height to avoid interference damage to the interface during insertion and extraction.

Insertion, Extraction and Use Specification: When inserting and extracting the product, keep the male plug and female socket horizontally aligned and apply force evenly along the axial direction. Violent insertion and extraction, oblique insertion and extraction, shaking insertion and extraction and lateral pulling are prohibited to prevent bending of vertical interface pins, housing cracking and damage to internal contacts. It is prohibited to use non-standard, damaged, deformed or foreign matter-containing male plugs for insertion and extraction to prevent damage to the internal structure of the interface and scratching of the contact gold plating.

Tape and Reel Packaging and Automatic Feeding Specification: This product adopts tape and reel packaging, 2560PCS/reel. The carrier tape peeling angle must be controlled within 165°~180°. When feeding with a fully automatic placement machine, strictly control the nozzle position and suction force to avoid vertical product tipping and pin offset caused by excessive nozzle pressure. After the tape is opened, avoid pulling and bending the carrier tape to prevent abnormal peeling force, product falling off and pin damage.

Environmental and Storage Requirements: The product must be stored in a dry, dust-free environment without corrosive gases. Avoid long-term exposure to high temperature, high humidity and salt spray environments to prevent oxidation and corrosion of metal plating. The product should be used as soon as possible after opening to avoid long-term bare storage affecting electrical contact performance and plating protection effect.

Adaptation and Selection Specification: This product is a 24PIN vertical 4-pin through-hole TYPE-C female socket with a total length of 13.5mm, and can only be used with matching standard TYPE-C male plugs. When selecting, choose according to equipment installation space, functional requirements and working environment temperature. It is prohibited to assemble and use with non-standard and size-mismatched male plugs/equipment.

Transportation and Turnover Specification: During product transportation and production turnover, keep the original packaging intact. Severe impact, extrusion and dropping of reels are prohibited to prevent carrier tape deformation, vertical product tipping and pin bending deformation. When stacking cartons, operate in accordance with the specification of 8 reels/layer to avoid heavy pressure causing reel deformation and product damage. Anti-static protection must be done during turnover.
