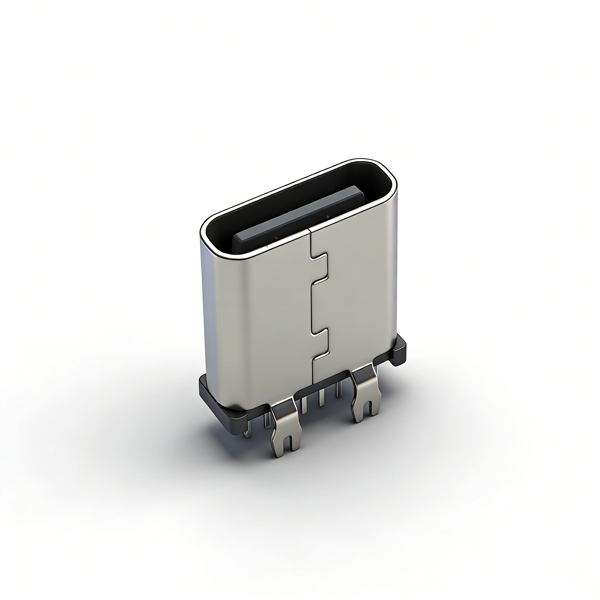

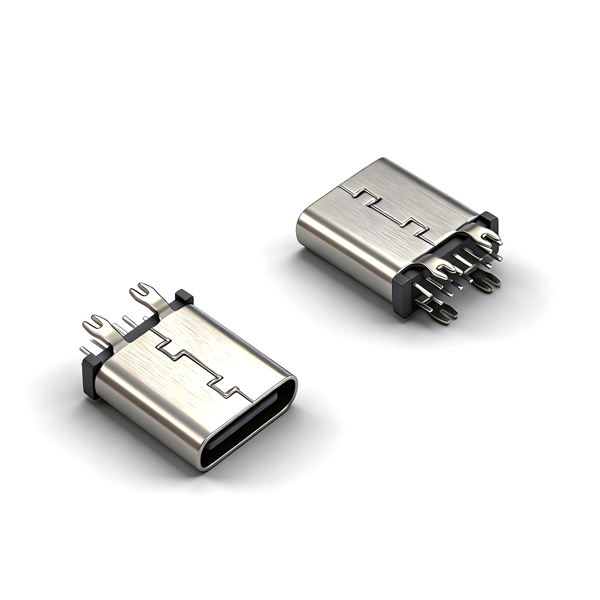

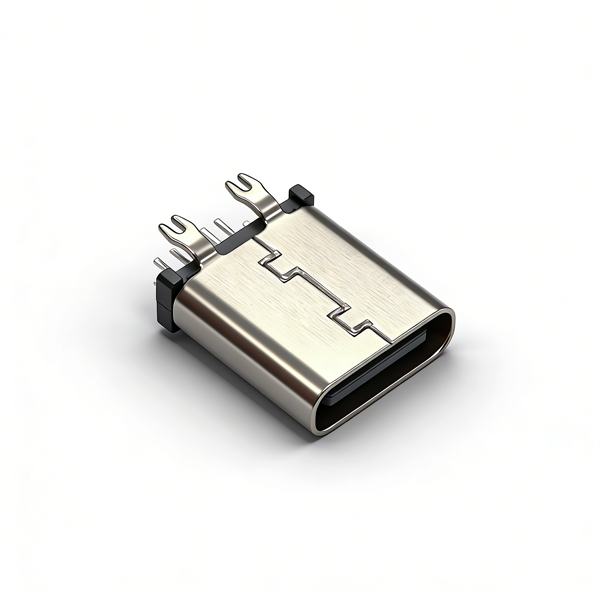

BO21404B Type-C Female Connector 14PIN Vertical Four-Pin Harpoon DIP Three-Mold No Post No Spring L=8.8/9.3/10.0/10.5

Core Advantages

3A Stable Current for Fast Charging & Data Transmission: Rated current 3A, voltage 5V, 14PIN stable pin design with standard CC, D+/D- signals, perfectly meeting daily fast charging, data transfer and power supply demands with stable electrical performance.

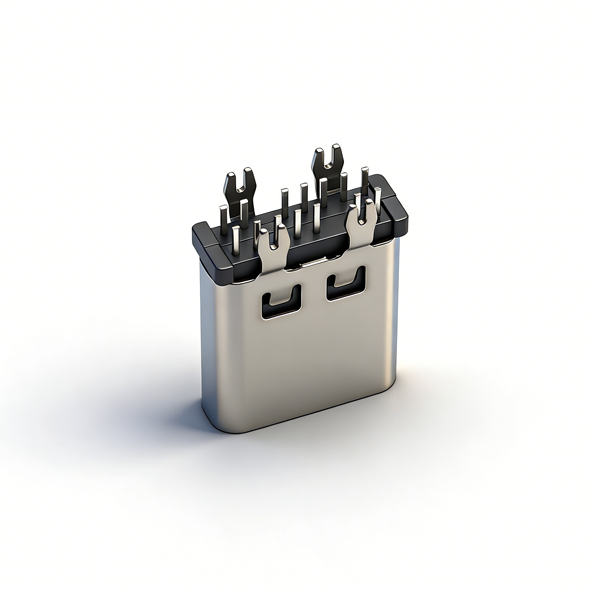

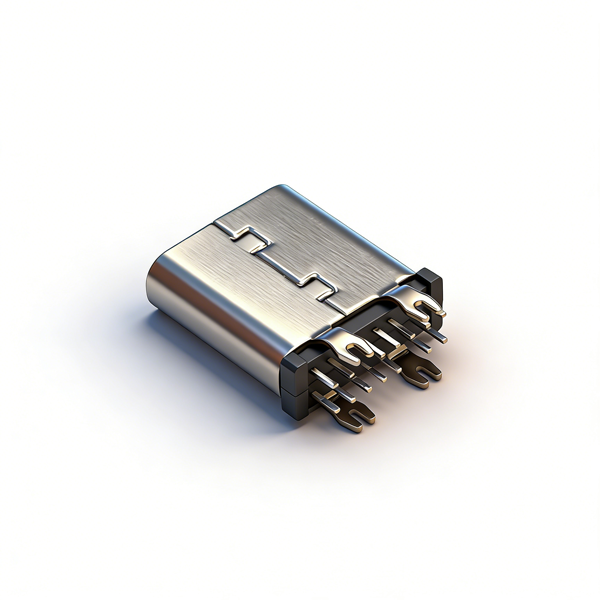

Vertical 4-Pin Fork DIP Structure for Firm Soldering: Vertical through-hole DIP design with four fork pins for strong fixation. Push force ≥50N, peel strength ≥150N, torsion strength 0.75Nm, highly resistant to vibration, pull and torsion for reliable use.
L=10.0mm Vertical Length, No Pillar & No Spring Design: Standard 10.0mm total length, simplified structure without pillar or spring, reducing failure points, ensuring smooth assembly and stable long-term performance.
High-Quality Materials for Durability & Conductivity: LCP high-temp insulator, SUS304 stainless steel shell, C2680 copper alloy terminals. Low contact resistance, anti-oxidation, wear-resistant, stable electrical performance.
5000 Cycles Lifespan for High Mechanical Reliability: Up to 5000 insertion cycles, insertion force 5-20N, extraction force 6-20N, smooth and durable for frequent daily use.
Wide Temp Range & 24H Salt Fog Resistance: Operating temperature -20℃~+85℃, passes 24H salt spray test, corrosion & temperature resistant, suitable for industrial, automotive and outdoor environments.
High Precision & Eco-Friendly Compliance: PCB tolerance ±0.05mm for high-precision assembly; RoHS & REACH compliant, Rev A mass production, stable quality for automatic production lines.

HOTLINE: 18922973271

Category	Detailed Parameter Information
Product Model	BO21404B
Full Product Name	TYPE C Female 14PIN Vertical 4-Pin Fork DIP L=10.0 Three-Mold No Pillar No Spring
Structure Type	Vertical DIP, 4-pin fork fixation, three-mold, no pillar, no spring
Total Length	L=10.0mm, drawing scale 1:1, unit mm
Pin Configuration	14PIN, including GND, VBUS, CC1/CC2, D+/D-, SBU1/SBU2
Core Materials	Insulator: LCP; Shell: SUS304; Terminals: C2680 Copper Alloy
Version Info	REV A, released 2023.05.05, manufacturer: Mingchuang Technology (Dongguan) Co., Ltd
Tolerance	PCB layout tolerance ±0.05mm; general ±0.02/±0.10/±0.20; angle ±1°/±2°

1. Electrical Performance

Rated Current: 3A
Rated Voltage: 5V
Withstand Voltage: AC 500V, 1min
Contact Resistance: ≤40mΩ, change ≤10mΩ after reliability test
Insulation Resistance: ≥100MΩ

2. Mechanical Performance

Insertion Force: 5~20N
Extraction Force: 6~20N
Cycle Life: Max 5000 cycles
Push Force: ≥50N
Peel Strength: ≥150N
Torsion Strength: 0.75Nm

3. Environmental & Material

Operating Temp: -20℃~+85℃
Salt Spray Test: 24H
Insulator: LCP
Shell: SUS304 Stainless Steel
Terminals: C2680 Copper Alloy

4. Structure & Dimensions

Type: TYPE C Female 14PIN
Mount: Vertical DIP, 4-pin fork
Total Length: L=10.0mm
Structure: Three-mold, no pillar, no spring
PCB Tolerance: ±0.05mm

DIP Installation Rules: Insert four fork pins vertically into PCB holes, solder only after fully seated. Avoid tilting, cold soldering or false soldering to ensure strength and reliability.
Insertion & Extraction Rules: Keep plug aligned horizontally. Do not insert obliquely, pull violently or twist sideways, to avoid terminal deformation, loose shell or structure damage.
Current Usage Rules: Rated current 3A. Do not overload for long periods. Use proper wire and PCB layout to avoid overheating, resistance rise or insulation aging.
PCB Design Rules: Follow recommended layout, keep tolerance ±0.05mm, reserve enough vertical space to avoid interference with nearby components.
Environmental Rules: Operating temp -20℃~+85℃. Do not use beyond range. Even with 24H salt fog resistance, extra protection is suggested in harsh corrosive environments.
Soldering Rules: Use proper DIP soldering profile, control temp and time to avoid LCP deformation which affects fitting accuracy.
Storage & Transportation: Store in dry, dust-free, non-corrosive environment. Avoid heavy pressure or dropping to prevent fork pin deformation or shell damage.
