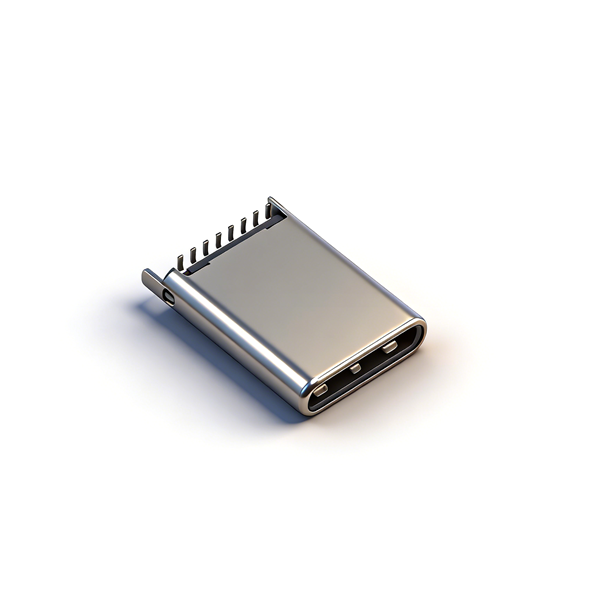

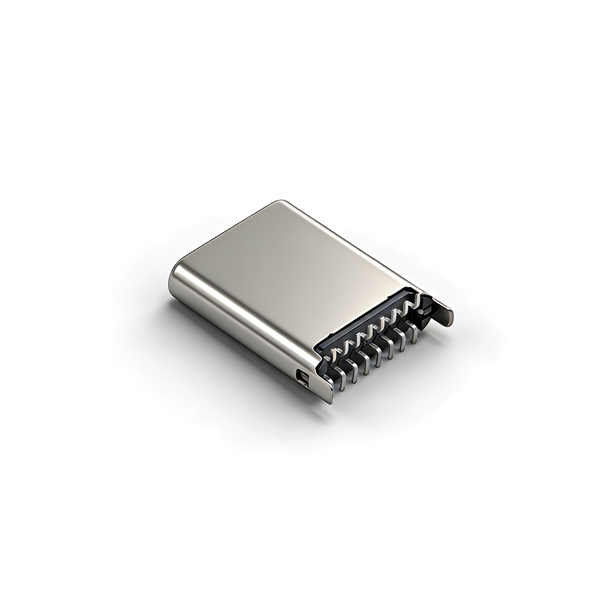

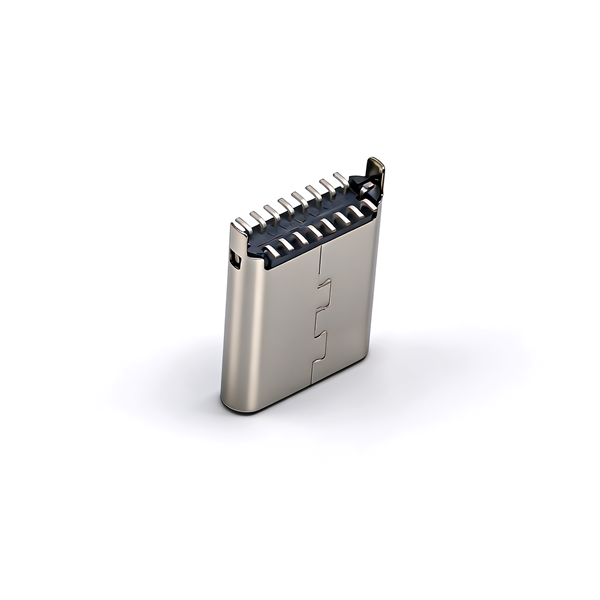

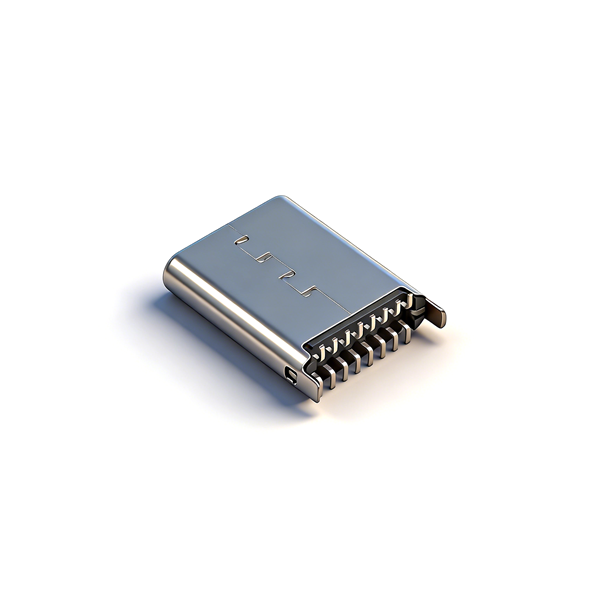

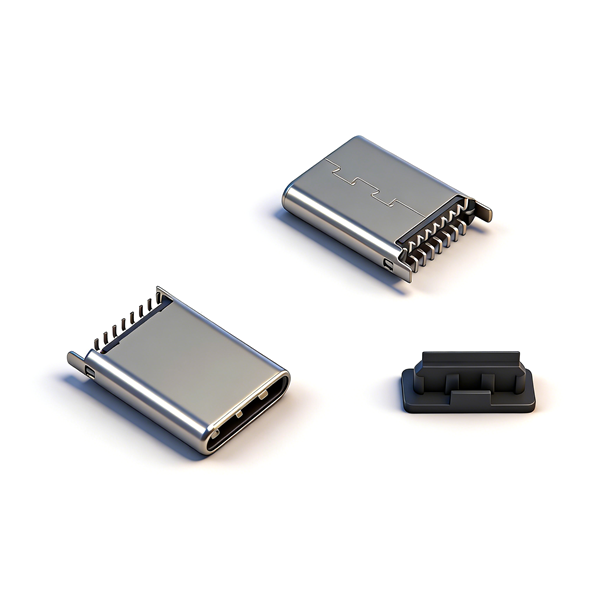

B07M1617A Type-C Male Connector 16PIN Vertical Two-Pin DIP&SMT L=9.0/9.5/10.0/10.5/11.0/11.5/12.0/12.5/13.0

Vertical SMT design for automatic production: Vertical 2-pin SMT structure supports high-speed automatic mounting, high assembly efficiency, suitable for mass production.
Riveted structure for firm and stable assembly: Riveting process ensures tight integration between shell and body, better anti-vibration and anti-falling performance.
16PIN full pin configuration with high compatibility: Standard 16PIN Type-C plug design, covers power, data and CC signals, meets daily power and transmission needs.
Brass terminals with gold-plated contacts: Brass terminals with gold-plated contact area and tin-plated solder area, low resistance, anti-oxidation, stable conductivity.
Black LCP high-temperature resistant insulator: Black LCP material with high temperature resistance, stable dimension, suitable for reflow soldering.
1.1mm long shell legs for strong soldering: Extended shell legs provide larger welding area, higher adhesion, better pull-out and torsion resistance.
Standard tape and reel packaging: 500PCS per reel, peeling angle 165°‑180°, ideal for automatic SMT feeding.
No spring design for simple and reliable structure: No internal spring reduces failure points, smooth insertion and long service life.
RoHS & REACH compliant for global use: Eco-friendly, free of hazardous substances, suitable for consumer electronics worldwide.

HOTLINE: 18922973271

Category	Detailed Parameter Information
Product Model	B07M1617A
Product Name	TYPE C Plug 16PIN Vertical 2-Pin SMT L=10.0 Riveted Shell Leg 1.1 201 Stainless Brass LCP Black No Spring Tape & Reel
Structure	Vertical SMT, 2-pin, riveted, no spring, 16PIN plug
Total Length	L=9.0/9.5/10.0/10.5/11.0/11.5/12.0/12.5/13.0mm
Shell Leg Length	1.10±0.05mm
Insulator	Black LCP high-temperature plastic
Terminals	Brass, gold-plated on contact, tin-plated on solder
Shell	201 Stainless Steel, matte nickel-plated
Rated Current	GND/VBUS: 1A Min; Others: 0.25A Min
Recommended PCB Thickness	t=0.80±0.05mm
Tolerance	General ±0.35mm; Precision ±0.15mm; PCB layout ±0.05mm
Packaging	Tape & Reel, 500PCS/reel, 10 reels/carton(5000PCS)
Version	REV A, Issued 2020.11.06, Mingchuang Technology (Dongguan) Co., Ltd.
Compliance	RoHS Compliant, REACH

SMT Mounting Rule: Keep product vertical and aligned during mounting, avoid offset or tilted pins, ensure 2 pins fully attach to pads for reliable soldering.
Reflow Soldering Rule: LCP insulator is temperature sensitive. Control reflow temperature and time to avoid deformation or dimension shift.
Insertion & Extraction Rule: Insert and extract horizontally, do not insert obliquely, twist or pull violently to prevent terminal deformation, loose rivet or shell drop.
Current Loading Rule: Do not exceed rated current: VBUS/GND ≤1A, others ≤0.25A, avoid overheating or terminal burning.
PCB Design Rule: Follow recommended layout, tolerance ±0.05mm, reserve enough vertical space to avoid interference.
Tape Feeding Rule: Use peeling angle 165°‑180°, force 50‑125g, prevent carrier tape deformation, component drop or pin bending.
Storage Rule: LCP absorbs moisture easily. Use soon after opening, store in dry, dust-free, room temperature environment.
Transportation Rule: Avoid dropping, extrusion or heavy pressure to prevent shell deformation, pin skew or loose rivet structure.
